Dantsin-Trimos V7 High Gauge

Spec:

TECHNICAL SPECIFICATIONSV64007001100Measuring rangemm (in)407 (16)711 (28)1110 (44)Measuring range with extensionmm (in)719 (28)1023 (40)1422 (56)Max. permissible errors, EMPEµm2 + L(mm)/400Repeatability, RMPE (2s)µm1 (Ø:2)Frontal squareness deviation, SMPEµm4610Maximal Resolutionmm (in)0.0001 (0.000005)Measuring forceN0.75 ÷ 1.5Autonomyh12InterfacesUSB / RS232Air cushionYesWeightkg212433

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

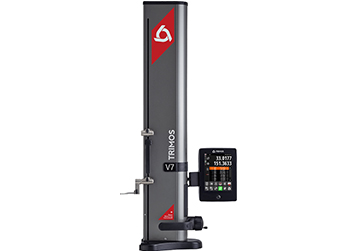

The height gauges V7 combine technological innovation and tradition.With their touch-display and lateral insert holders, which have proven their worth for decades, the V7 rank as universal instruments for the workshop.In spite of an entirely revisited interface, Trimos instruments philosophy has been maintained and the user will have no difficulty whatsoever to rapidly take it in hand.The touch display allows a maximal simplified use as no superfluous information is displayed and therefore the number of functions buttons is limited to what is strictly necessary.Functions, normally considered as complex, such as 2D, programming, statistics, become child’s play. It results in an unequalled ease of use and therefore a substantial increase in productivity.The pair of lateral insert h...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

The height gauges V7 combine technological innovation and tradition.

With their touch-display and lateral insert holders, which have proven their worth for decades, the V7 rank as universal instruments for the workshop.

In spite of an entirely revisited interface, Trimos instruments philosophy has been maintained and the user will have no difficulty whatsoever to rapidly take it in hand.

The touch display allows a maximal simplified use as no superfluous information is displayed and therefore the number of functions buttons is limited to what is strictly necessary.

Functions, normally considered as complex, such as 2D, programming, statistics, become child’s play. It results in an unequalled ease of use and therefore a substantial increase in productivity.

The pair of lateral insert holders comes from generations of instruments that have forged the reputation of Trimos. Their great robustness and flexibility allow the use of very diverse probes up to 400 mm long with a breath-taking repeatability.

The V7 are equipped with the revolutionary displacement handwheel allowing the user to choose either the manual or motorized displacement mode.

Measuring ranges 400 to 1800 mm
Simple and easy-to-use graphic interface
Electronically adjustable measuring force
Manual or motorized displacement
2d, programming, statistics
Large range of accessories
All possible adjustments without tools
Interfaces rs232 and usb

TECHNICAL SPECIFICATIONS

V6		400	700	1100
Measuring range	mm (in)	407 (16)	711 (28)	1110 (44)
Measuring range with extension	mm (in)	719 (28)	1023 (40)	1422 (56)
Max. permissible errors, EMPE	µm	2 + L(mm)/400
Repeatability, RMPE (2s)	µm	1 (Ø:2)
Frontal squareness deviation, SMPE	µm	4	6	10
Maximal Resolution	mm (in)	0.0001 (0.000005)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	12
Interfaces		USB / RS232
Air cushion		Yes
Weight	kg	21	24	33
