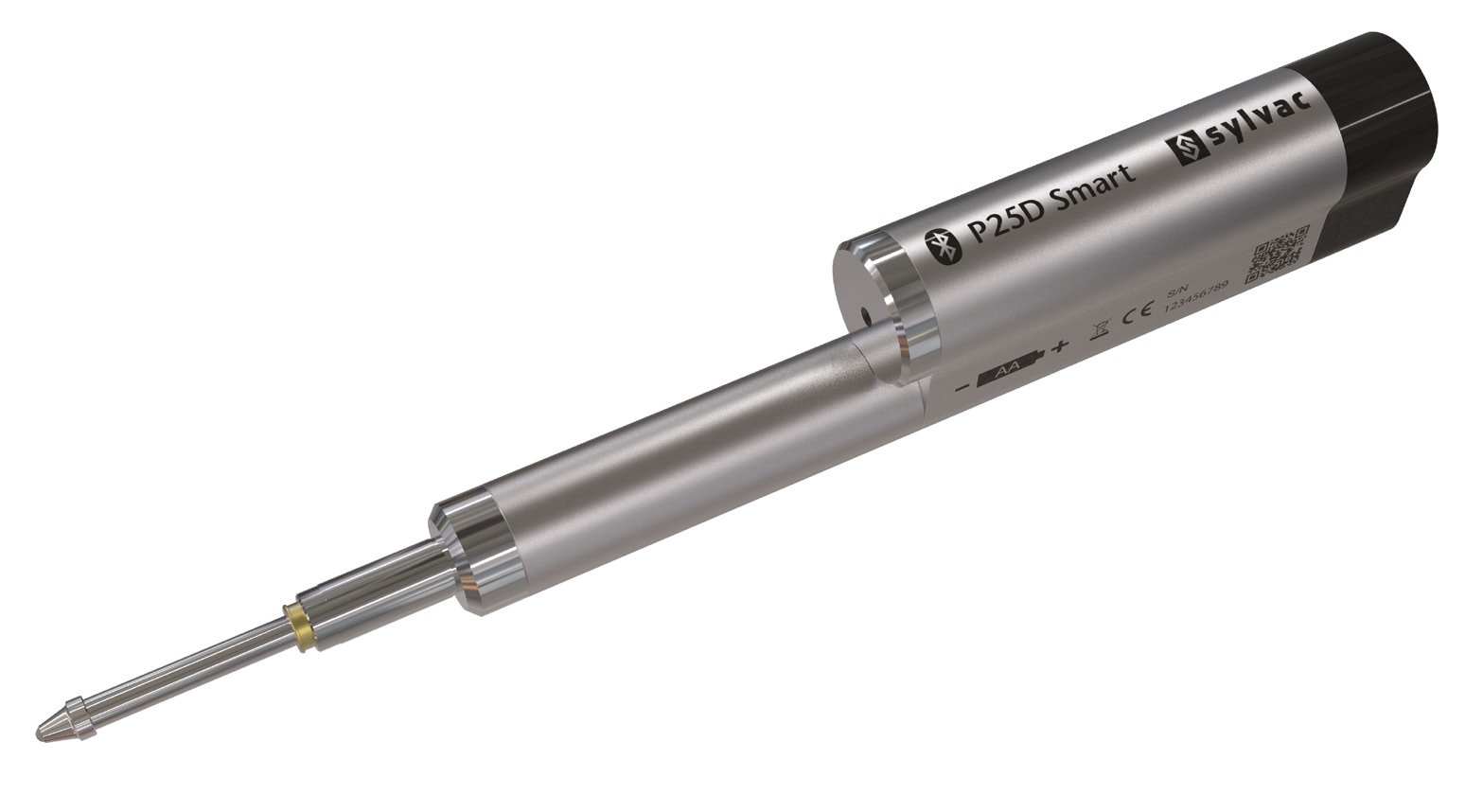

Dantsin Absolute digital measuring probe P25D Smart

FeaturesPrecision at Your Fingertips: This probe provides high-precision measuring with a range of 25mm and a resolution of 0.01µm. Its patented dual inductive system ensures accuracy and repeatabilityBuilt to Last: With an extremely robust ball bearing guide and a stainless steel body, the probe is designed to withstand heavy-duty workshop use. Its protection class IP54 ensures durability and longevity.Lightning-Fast Readings: Up to 100 values per second (depending on configuration) ensure fast and efficient measurement.Accuracy You Can Count On: The P25D has a maximum error of 0.8µm and a repeatability of 0.08µm, ensuring precise and reliable results every time.

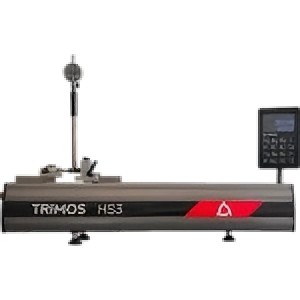

Dantsin Motorised Setting Bench HS3

The HS3 is the ideal solution for rapid setting and calibration of variable-size measuring instruments. Thanks to its exceptional accuracy and robust construction, it is equally at home on the production floor or in the laboratory.Based on the proven Trimos Horizon Setting range, the new HS3 combines reliability with modern design. Its heavy-duty cast-iron base ensures optimum stability. Its intuitive interface makes it quick and easy to use, for increased productivity and greater consistency in your measurements.Specially designed for adjusment of2-point alesometersInternal and external comparative measurement toolsAnalogue & digital countersVernier calipersExternal micrometersIt’s main assetsUniversal compatibility: works with 99% of 2-point bore gauges on the marketImmediate reading...

Dantsin-Trimos C4

Dantsin Sylvac Plastiform

Dantsin-Extol CNC CMM

Next Generation Of Shop Floor Hardened, Non-Cartesian CMMTrue to Aberlink's heritage for innovation, the Extol is the world's first CMM to utilise a delta mechanism.Designed for robustness and reliability, the Extol CMM will run around the clock making it ideal whether it is positioned next to a machine tool, in a manufacturing cell, or used in a dedicated inspection area.Five temperature sensors monitoring both the machine and ambient temperature ensure that the Extol is capable operating in uncontrolled environments and reporting measurements as though they had been taken at 20°C. The software will also produce a warning should the temperature be changing at a rate that is not conducive with reasonable metrology practice.Robust, accurate and reliable, the Extol CMM is the pe...

Case / Case

Latest Case

Job / Job

Contact / Contact

Service / Service

BRAND

TRIMOS

Sylvac

Kunz

Wyler

Werth

Cases / Cases more

Download / Download

PRODUCTS Products

Products / Products

Dantsin Absolute digital measuring probe P25D Smart

Release Time: 2025 - 06 - 09

Dantsin Motorised Setting Bench HS3

Release Time: 2025 - 06 - 09

Dantsin-Trimos C4

Release Time: 2021 - 03 - 22

Dantsin Sylvac Plastiform

Release Time: 2018 - 11 - 06

Dantsin-Extol CNC CMM

Release Time: 2016 - 06 - 30

Dantsin-Trimos V9 High Gauge

Release Time: 2016 - 07 - 04

The height gauge V9 has been developed for the most demanding users. Laboratories and workshops for whom measuring reliability is determining will fully appreciate its exceptional precision level and its "Swiss Made" finish.Metrological performances have been the core of the development of this height gauge. No compromise on precision and repeatability have been tolerated. This is why some construction details, particularly probe holders differ from other models.The display, based on an entirely tactile interface, offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angles measurements o...

Dantsin Sylvac Capacitive measuring probes

Release Time: 2015 - 10 - 14

• Capacitive absolute measuring probes, plunger type• Resolution 0.0001 mm• Measuring range from 5 to 25 mm• Plain bearing or ball bearing, integrated vacuum lifter on P5• Compatible with all Sylvac digital units• Excellent linearity• Interchangeable cables on most types

Products Product Details

You are here : Home → PRODUCTS → Measuring tools > Hand tools

Dantsin Lever probe S_Probe LPD Smart

Spec:

Scope:

Availability: 2025 - 06 - 09

Describe:

Explain:

FeaturesExceptionnal Measurement Capabilities: Sylvac’s absolute lever probe delivers an impressive resolution of 0.01 µm for the most demanding measurement tasks. Engineered for reliability, it minimizes hysteresis to ensure consistent and accurate results with outstanding repeatability and accuracy. Direct Digital Output: The probe can be connected directly to a computer via Bluetooth® wireless technology, allowing for seamless integration with data acquisition software such as Sylcom without the need for additional modules or display units.Compact and Versatile Design: With a maximum thickness of 16 mm, it’s tailored for applications in tight spaces and offers a dovetail mounting system for maximum flexibility. Our lever probe can handle a variety of setups, from jigs and fixt...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Features

Exceptionnal Measurement Capabilities: Sylvac’s absolute lever probe delivers an impressive resolution of 0.01 µm for the most demanding measurement tasks. Engineered for reliability, it minimizes hysteresis to ensure consistent and accurate results with outstanding repeatability and accuracy.
Direct Digital Output: The probe can be connected directly to a computer via Bluetooth® wireless technology, allowing for seamless integration with data acquisition software such as Sylcom without the need for additional modules or display units.
Compact and Versatile Design: With a maximum thickness of 16 mm, it’s tailored for applications in tight spaces and offers a dovetail mounting system for maximum flexibility. Our lever probe can handle a variety of setups, from jigs and fixtures to integration with height gauges or PLCs.
Key applications:

Integration into measuring jigs and fixtures
Integration into automation, interaction with PLC
Installation and maintenance of machines
Laboratory measurements, for example for flatness, runoutor perpendicularity
Workshop applications, measurements on the machine
Measurement with height gauge

Use Cases: This lever probe is particularly effective for:

Measurements in restricted or enclosed spaces.
Assessing geometric tolerances (e.g., runout, concentricity).
Non-contact surfaces not measurable via optical systems.
Dynamic measurements.

Exceptional Compatibility: Sylvac’s lever probes are fully compatible with the following Sylvac software and display units:

D300S
D400S*
D62S*
Sylcom: Version 1.3.1 and higher (USB).
Vmux: Version 1.35 and higher (USB).
