Dantsin Wyler 2-Axis Inclinometer BlueLEVEL-2D

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

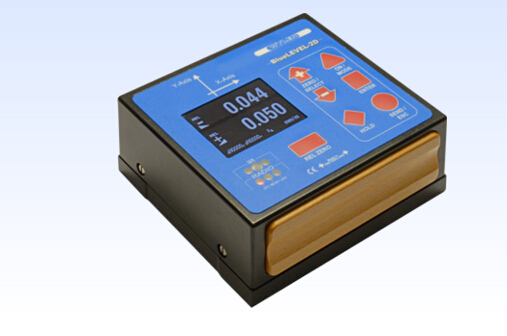

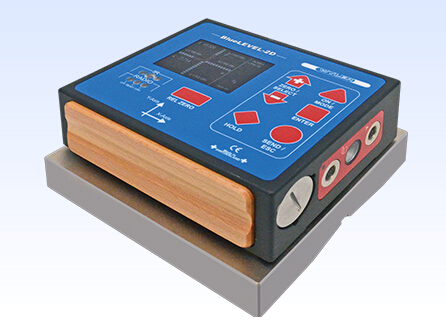

Withthe introduction of the BlueLEVEL-2D WYLER AG is underlining again its leading position in the field of inclination measuring instruments: The new Blue-LEVEL-2D combines for the first time two high-precision inclination sensors in a compact housing together with an integrated graphical display! This opens new applications and facilitates the alignment of machines and tools substantially: Alignment of machines in 2 directions simultaneouslyAlignment of reference platesPitch and roll measurement on machinesAlignment of cranes, containers, trucks etc.Monitoring of cranes, containers, trucks etc. The inclination measuring instrument BlueLEVEL-2D has the following features: Rugged, rust-protected housing made of aluminiumHigh precision bases with three inserts made of sintered carbide Ø...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

This opens new applications and facilitates the alignment of machines and tools substantially:

Alignment of machines in 2 directions simultaneously
Alignment of reference plates
Pitch and roll measurement on machines
Alignment of cranes, containers, trucks etc.
Monitoring of cranes, containers, trucks etc.

The inclination measuring instrument BlueLEVEL-2D has the following features:

Rugged, rust-protected housing made of aluminium
High precision bases with three inserts made of sintered carbide Ø 20mm with one M4 thread each
Large and very easy-to-read color display
Various display methods can be chosen
All current units can be indicated
The instrument is compatible with the full range of WYLER digital sensors
Powered by standard 1.5V batteries, rechargeable batteries or with main adapters
The internal software allows a simple zero setting, using a reversal measurement
Fulfils the strict CE- / FCC requirements (immunity / emission electromagnetic smog)
Options:

External power supply 24V
Wireless communication, based on Bluetooth technology
Cable to connect the instrument to a PC
Software to collect measuring data
Various attachable measuring bases on special request, like e.g. prismatic

Graphical 2D-display

The 2D-display shows graphically the position of an object in space, respectively the change of its position and makes the information easily understandable.

This substantially facilitates the alignment of e.g.

a machine
a reference plate
etc.

The following parameters (among others) can be set and changed at the BlueLEVEL-2D:

Units
Display of measuring range
Type of display
Filter settings

It is possible to send the measured data via an RS232 port to a PC/laptop and therewith to the
WYLER software LEVELSOFT PRO, MT-SOFT, LabEXCEL and DYNAM II.
