Theinclination measuring instrument nivelSWISS is well known and well established in the machine tool industry. nivelSWISS-D is the consequentfurther development of the classic nivelSWISS:Stable cast iron bodyErgonomic handle supporting accurate measurement even on vertical surfacesWell-proven measuring systemDigitaldisplay allowing the full utilization of the accuracy of the measuring system. Furthermore, the digital and back-lit display allows excellent readability even under difficult light conditionsThe display can be inclined to allow optimal readability from aboveSimpleintegration into WYLER measuring systems: nivelSWISS-D can be connectedto a PC/laptop with a USB cable. The instrument is powered from the USB-Port. The digital measuring data transmission allows evalution withLEVELS...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

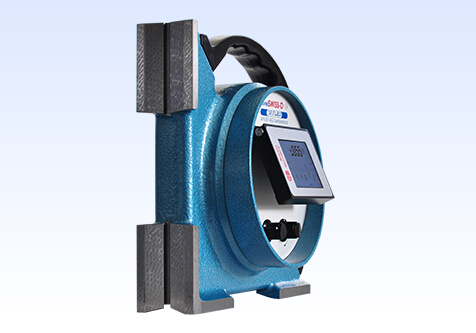

The inclination measuring instrument nivelSWISS is well known and well established in the machine tool industry. nivelSWISS-D is the consequent further development of the classic nivelSWISS:

Stable cast iron body
Ergonomic handle supporting accurate measurement even on vertical surfaces
Well-proven measuring system
Digital display allowing the full utilization of the accuracy of the measuring system. Furthermore, the digital and back-lit display allows excellent readability even under difficult light conditions
The display can be inclined to allow optimal readability from above
Simple integration into WYLER measuring systems: nivelSWISS-D can be connected to a PC/laptop with a USB cable. The instrument is powered from the USB-Port. The digital measuring data transmission allows evalution with LEVELSOFT PRO or MT-SOFT
An infrared zapper facilitates the transfer of the measurement data to the Software

The nivelSWISS-D is the ideal symbiosis of the well-proven measuring system of the nivelSWISS and the simple handling of digital WYLER measuring systems.

Measuring technology:
Analog measuring technology with inductive probe system. The mechanical pendulum is friction free suspended and has therefore the tendency to swing back to the vertical position. At the lower end of the pendulum a ferrite core is fastened, which is penetrating a double winded coil fed by alternating current. Digital display of the measuring data.

nivelSWISS-D is available in two versions:

nivelSWISS-D HORIZONTAL VERSION

With a horizontal flat measuring base, equipped with slots for screwing onto special measuring bases (i.e. granite measuring bases) or on customers‘ own special measuring equipment. Mainly used for the adjustment or alignment of horizontal machines and for checking the flatness of machine tables and
guideways.

nivelSWISS-D ANGULAR VERSION

Equipped with two prismatic measuring bases in rectangular position to each other for measuring flat surfaces and shafts (diameters Ø 20 ... 120mm) horizontally or vertically.

The measuring faces are carefully hand scraped to obtain an extraordinary precision. This makes the nivelSWISS-D extremely suitable for adjustments or checks on rectangular geometrical components of machine tools and structures. Both versions allow the direct connection to a laptop with a USB cable.
