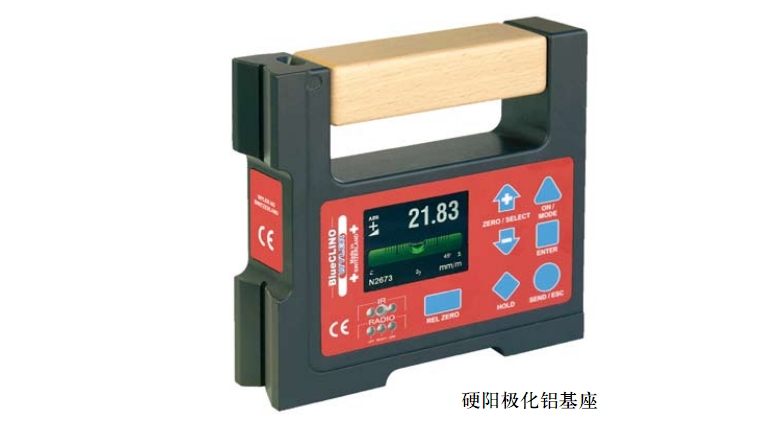

Dantsin-Wyler BlueClino

The new BlueCLINO is based on the well-proven CLINO2000 and has the following

features:

• With radio data transmission.

• Large and very easy-to-read color display

• Various color profiles can be chosen

• Various display methods such as bar graphs or spirit levels can be chosen

• All current units can be indicated

• High precision over the entire measuring range of ±10° or ±60° with

integrated temperature compensation

• The internal software, together with a reversal measurement, a simple zero

setting

• Rugged housing, with prismatic bases made of either aluminum hard

anodized or cast iron, nickel plated

• The base on the right hand side can be used as a measuring base as well

• Built-in cross vial for easy alignment of the vertical axis in order to avoid

“twist errors”

• The instrument is compatible with the full range of WYLER digital sensors

• Powered by standard 1.5 V batteries, rechargeable batteries or with mains

adapter

• Fulfils the strict CE requirements (immunity against electromagnetic smog)

• The instrument can be adjusted to local gravitation

• Options:

• The instrument can be recalibrated with the help of simple calibration

tools that are supplied together with the instrument (option). This

process is supported by the internal software

• Magnetic inserts in the left hand vertical and bottom horizontal base

possible

• A fourth measuring base may be attached to the top of the instrument
