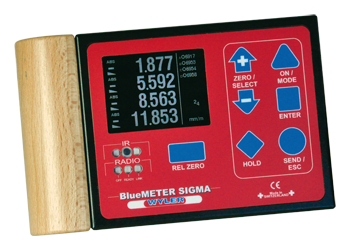

Dantsin-Wyler BlueMETER SIGMA

BlueMETER SIGMA is a further enhancement of the well known BlueMETER, and

has been developed as an intelligent display unit for the electronic inclination

measuring instruments

• BlueLEVEL

• BlueCLINO and BlueCLINO High Precision

• MINILEVEL NT and LEVELTRONIC NT (both by means of cables only)

• CLINOTRONIC PLUS

• ZEROMATIC

• ZEROTRONIC-sensors

Besides the excellent measuring accuracy, the measuring instruments BlueLEVEL,

BlueCLINO, CLINOTRONIC PLUS and ZEROTRONIC sensors supply a fully digital

signal for transmitting these values over long distances without any loss of quality.

BlueMETER SIGMA is

• a display unit

and

• an interface between instrument and PC/laptop

The following new functions and features distinguish the BlueMETER SIGMA

from the BlueMETER:

• large and very easy-to-read color display

• Various color profiles can be chosen

• Various display methods are available: the new graphical 2D-display

allows very useful new applications!

• Measured values of up to four instruments can be displayed simultaneously.

Users can choose which instrument is displayed as A, B, C or D.

• Furthermore, the following options are available:

• Display of the difference of two instruments (A-B)

• Display of the difference of four instruments (A-B and C-D). The values

can then be displayed as a 2D-graph: A-B for the X-axis, and C-D for

the Y-axis.

• The connectors for the cables are now on the right hand side of the instrument,

allowing adjusting the instrument to the optimal reading angle with

a built-in bracket on the back of the BlueMETER SIGMA.

Graphical 2D-display

The 2D-display shows graphically the position of an object in space, and the change

of its position and makes the information easily understandable.

This substantially facilitates the alignment of e.g.

• a machine

• a truck

• a container hanging on a crane

• a reference plate

etc.

The following parameters (among others) can be set and changed at the BlueMETER

SIGMA:

• Units

• Filter settings

• Relative base length

• Physical address of the Zerotronic sensors

It is possible to send the measured data via an

RS232 port to a PC/laptop to the WYLER software

wylerINSERT, wylerCHART, wylerDYNAM and

wylerSPEC.
