Products Product Details

Dantsin Sylvac High accuracy internal measurement Ultima

Spec:
Scope:
Availability: 2021 - 03 - 22
Describe:
• Innenmessgeräte Katalog deutsche version• Catalogue mesure intérieure version française
Explain:
Ultima• Measuring range from 2 to 310 mm• Resolution up to 0.0001 mm• Mechanical repeatability : 1μm from 2 to 210 mm and 2 μm from 210 to 310 mm• Robust construction designed for use by inspection and machine shop• UKAS certificate supplied with each head• UKAS certificate supplied with each setting ring.• Rings manufactured according to DIN 2250 part 2 (standard)• Blind bore measuring from 12 to 310 mm• Compatible with all Sylvac digital display D50S, D80S, D100S, D200S• Special heads on request ( threads, grooves, splines, slot width, etc...)
  • Description
  • Technical
    cification
  • Video
  • Success Case
  • Related Products

Ultima

• Measuring range from 2 to 310 mm
• Resolution up to 0.0001 mm
• Mechanical repeatability : 1μm from 2 to 210 mm and 2 μm from 210 to 310 mm
• Robust construction designed for use by inspection and machine shop
• UKAS certificate supplied with each head
• UKAS certificate supplied with each setting ring.
• Rings manufactured according to DIN 2250 part 2 (standard)
• Blind bore measuring from 12 to 310 mm
• Compatible with all Sylvac digital display D50S, D80S, D100S, D200S
• Special heads on request ( threads, grooves, splines, slot width, etc...)

Germany Black & how to solve the problem of measuring small modulus gear
Germany Black & how to solve the problem of measuring small modulus gear
2016 - 07 - 22
How to ensure the quality of the micro system micro-planetary gear? A multi-sensor coordinate measuring machine, a fiber optic probe, and a set of specialized software makes it possible - using the scanning operation can even be quickly and accurately measure the tooth profile surfaces in accordance with the most stringent standards. From -100 ℃ to + 200 ℃ of extreme temperatures, vibration, ...
More
Trimos instruments at China Railway High-speed (CRH)
Trimos instruments at China Railway High-speed (CRH)
2016 - 07 - 22
China Railway High-speed (CRH) is launching the new generation of trains using Trimos instruments: the LABCONCEPT Nano and Horizon Premium .CRH is the high-speed rail service operated by China Railway. All high-speed trains in commercial use in China are named CRH. The different models of CRH trains are expected to have a maximum speed of 250 km/h, 350 km/h, 416.6 km/h. The fastest trainset, CRH38...
More
Hard disk assembly and test industry
Hard disk assembly and test industry
2016 - 07 - 22
Dantsin Sylvac batch testing sensors measuring position. Based Dantsin-Sylvac good data open, users can easily customize their software and measurement requirements.
More
Dantsin Sylvac High accuracy internal measurement Ultima
Dantsin Sylvac High accuracy internal measurement Ultima
Release Time: 2015 - 10 - 13
Ultima• Measuring range from 2 to 310 mm• Resolution up to 0.0001 mm• Mechanical repeatability : 1μm from 2 to 210 mm and 2 μm from 210 to 310 mm• Robust construction designed for use by inspection and machine shop• UKAS certificate supplied with each head• UKAS certificate supplied with each setting ring.• Rings manufactured according to DIN 2250 part 2 (standard)• Blind bore measuring from 12 to 310 mm• Compatible with all Sylvac digital display D50S, D80S, D100S, D200S• Special heads on request ( threads, grooves, splines, slot width, etc...)
More

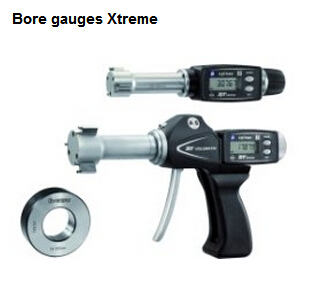

Dantsin Sylvac Bore gauges Xtreme
