Products Product Details

You are here : Home → PRODUCTS → Horizontal Measuring Instruments(LAB)

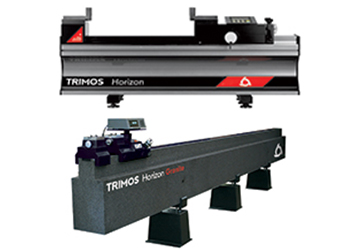

Dantsin-Trimos HORIZON / HORIZON GRANITE

Spec:

TECHNICAL SPECIFICATIONSHorizonH501H1001H1501H2001Measuring rangemm (in)520 (20)1020 (40)1520 (60)2020 (80)Resolutionsmm (in)0.01/0.001 (.0001 / .00005)Max. displacement speedmm/s1500Measuring forceN3Autonomyh100InterfaceRS232Operational temperature°C+10 ÷ +40Temperature of storage°C-10 ÷ +40Weightkg94126158190Horizon GraniteHG3000HG4000HG5000HG6000HG8000HG12000Measuring rangemm (in)3000 (118)4000 (157)5000 (196)6000 (236)8000 (315)12000 (472)Resolutionsmm (in)0.01/0.001/0.0001 (.001 / .0001 / .00001)Max. displacement speedmm/s2000Measuring forceN3InterfacesRS232/USBOperational temperature°C+10 ÷ +40Temperature of stockage°C-10 ÷ +40Relative humidity%20 ÷ 80Weightkg10601980320037001000015000

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

The «Horizon» instruments respond to the current requirements for quality inspection in manufacturing areas. They allow a quick, precise checking and setting. The instruments are perfect for setting all kinds of comparative measuring equipment and for checking length, internal and external diameters, thread gauges etc. The new innovative concept with incorporated measuring system and display unit ensures excellent results by easy manipulation and is the answer to various demands in the field of production. Simplicity of use is an additional valuable advantage. The instrument range comprises several models, from 500 mm up to 2000 mm (Granite 3000 - 12000 mm). A wide selection of easy interchangeable accessories completes the application possibilities. Ideal for use in the workshop...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

The «Horizon» instruments respond to the current requirements for quality inspection in manufacturing areas. They allow a quick, precise checking and setting.

The instruments are perfect for setting all kinds of comparative measuring equipment and for checking length, internal and external diameters, thread gauges etc.

The new innovative concept with incorporated measuring system and display unit ensures excellent results by easy manipulation and is the answer to various demands in the field of production. Simplicity of use is an additional valuable advantage.

The instrument range comprises several models, from 500 mm up to 2000 mm (Granite 3000 - 12000 mm). A wide selection of easy interchangeable accessories completes the application possibilities.

Ideal for use in the workshop area
Very simple manipulation
Precise checking and setting made easy
Autonomy 100 hours
Wide selection of accessories


TECHNICAL SPECIFICATIONS

Horizon		H501	H1001	H1501	H2001
Measuring range	mm (in)	520 (20)	1020 (40)	1520 (60)	2020 (80)
Resolutions	mm (in)	0.01/0.001 (.0001 / .00005)
Max. displacement speed	mm/s	1500
Measuring force	N	3
Autonomy	h	100
Interface		RS232
Operational temperature	°C	+10 ÷ +40
Temperature of storage	°C	-10 ÷ +40
Weight	kg	94	126	158	190

Horizon Granite		HG3000	HG4000	HG5000	HG6000	HG8000	HG12000
Measuring range	mm (in)	3000 (118)	4000 (157)	5000 (196)	6000 (236)	8000 (315)	12000 (472)
Resolutions	mm (in)	0.01/0.001/0.0001 (.001 / .0001 / .00001)
Max. displacement speed	mm/s	2000
Measuring force	N	3
Interfaces		RS232/USB
Operational temperature	°C	+10 ÷ +40
Temperature of stockage	°C	-10 ÷ +40
Relative humidity	%	20 ÷ 80
Weight	kg	1060	1980	3200	3700	10000	15000

Germany Black & how to solve the problem of measuring small modulus gear

2016 - 07 - 22

How to ensure the quality of the micro system micro-planetary gear? A multi-sensor coordinate measuring machine, a fiber optic probe, and a set of specialized software makes it possible - using the scanning operation can even be quickly and accurately measure the tooth profile surfaces in accordance with the most stringent standards. From -100 ℃ to + 200 ℃ of extreme temperatures, vibration, ...

Trimos instruments at China Railway High-speed (CRH)

2016 - 07 - 22

China Railway High-speed (CRH) is launching the new generation of trains using Trimos instruments: the LABCONCEPT Nano and Horizon Premium .CRH is the high-speed rail service operated by China Railway. All high-speed trains in commercial use in China are named CRH. The different models of CRH trains are expected to have a maximum speed of 250 km/h, 350 km/h, 416.6 km/h. The fastest trainset, CRH38...

Hard disk assembly and test industry

2016 - 07 - 22

Dantsin Sylvac batch testing sensors measuring position. Based Dantsin-Sylvac good data open, users can easily customize their software and measurement requirements.

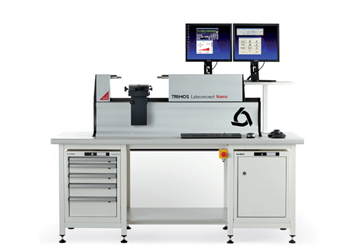

Dantsin-Trimos LABCONCEPT NANO

Release Time: 2015 - 10 - 15

The Labconcept Nano is a new reference in the field of dimensional metrology. It integrates 40 years of knowledge and continuous improvement. It is a remarkable instrument for all measuring tasks that require extremely high accuracy. The uncompromising design of the Labconcept Nano offers an ideal and performing platform for checking and calibration of all kinds of gauges and measuring instruments. Checking of internal and external dimensions will be done as a fully automatic procedure by the three motorized axes XYZ and the legendary simplicity of use of Trimos WinDHI software. The Labconcept Nano is completely designed and manufactured in Switzerland according to the highest quality standards. Robustness, reliability and longevity are our traditional values. The Labconcept Nano combines ...

Dantsin-Trimos HORIZON / HORIZON GRANITE

Release Time: 2015 - 10 - 15

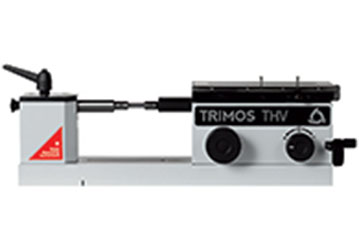

Dantsin-Trimos THV

Release Time: 2015 - 10 - 15

The horizontal THV instrument has been designed for calibration and certification of gauging equipment of small dimension. It allows easy and precise checking of plug gauges, ring gauges, thread plug gauges, test and dial indicators as well as measuring of high precision production parts. The incorporated opto-electronic measuring system guarantees high accuracy. A separate display unit or a PC with Trimos WinDHI software can be used to display the measurement results. The THV instruments can also be delivered without measuring system. An electronic probe or a dial indicator shall then be used as measuring system. Due to its small size, The THV can be moved easily. It is therefore frequently used as mobile calibration station. Ideal for use in a clean room and in the workshop areaThe instr...

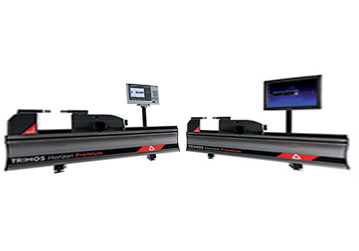

Dantsin-Trimos HORIZON PREMIUM (HPA/HPD)

Release Time: 2015 - 10 - 15

The HORIZON PREMIUM instruments fulfill today’s requirements of high accuracy quality control equipment in production areas and take into consideration EN ISO 9000 standards.The instruments may be used in a workshop area or installed in a quality control room for checking of measuring gauges and setting of all types of comparative measuring equipment. The well-designed, reliable new concept, obtained by superior engineering, ensures high precision and optimum results by easy manipulation as well as a valuable level of productivity.The modular design allows the selection between two measuring systems: analog signal output and Heidenhain display unit or digital signal output and computer with TFT touch screen and Trimos-WinDHI software.Instruments with a measuring range from 500 to 3000 mm a...

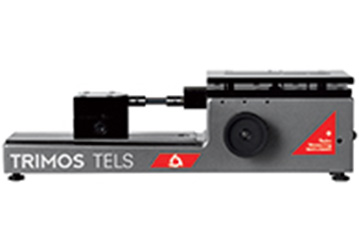

Dantsin-Trimos TELS
