You are here : Home → PRODUCTS → Horizontal Measuring Instruments(LAB)

Dantsin-Trimos TWINNER

Spec:

TECHNICAL SPECIFICATIONSTwinnerT4MT8MT12MT20MMeasuring range, length Xmm (in)400 (15)800 (31)1200 (47)2000 (78)Measuring range, diameter Ymm (in)125 (5)125/160 (5/6)Resolutions, length Xmm0.001/0.0001Resolutions, diameter Ymm0.001/0.0001Measuring force, length and diameterN2.0Max. part weightkg20/100Weight (instruments)kg120140180240

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

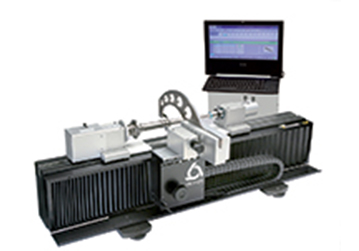

TWINNER is a universal instrument for the measurement of cylinder-shaped parts, which replaces a great number of conventional instruments in the workshop. This measuring centre, multifunctional, flexible and mobile, allows to measure and document practically all that is manufactured by turning.This instrument has been specifically developed for the workshop and lends itself perfectly to a use in production, close to the machining centre.TWINNER allows the quality control of sole parts as well as that of small batches. Other areas of use are the control and acceptation of machine tool. All revolution parts can be precisely measured, without adjustment necessary. The range of parts that can be measured spreads over typical turning parts, such as axles, gearbox shafts, camshafts, crankshafts,...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

This instrument has been specifically developed for the workshop and lends itself perfectly to a use in production, close to the machining centre.

TWINNER allows the quality control of sole parts as well as that of small batches. Other areas of use are the control and acceptation of machine tool. All revolution parts can be precisely measured, without adjustment necessary. The range of parts that can be measured spreads over typical turning parts, such as axles, gearbox shafts, camshafts, crankshafts, transmission shafts, joints and revolving parts, to parts with very elaborate geometry.

TWINNER is available in the following dimensions: lengths of 400, 800, 1200 and 2000 mm and diameters of 125 or 160 mm. The manual use and control of the TWINNER are performed by a PC with TWINNER soft.

Built for workshop use
Simple handling
Use without preliminary knowledge
No user's influence thanks to constant measuring force
Excellent repeatability
Very fast change of parts
Easy calibration
Complete selection of accessories


TECHNICAL SPECIFICATIONS

Twinner		T4M	T8M	T12M	T20M
Measuring range, length X	mm (in)	400 (15)	800 (31)	1200 (47)	2000 (78)
Measuring range, diameter Y	mm (in)	125 (5)	125/160 (5/6)
Resolutions, length X	mm	0.001/0.0001
Resolutions, diameter Y	mm	0.001/0.0001
Measuring force, length and diameter	N	2.0
Max. part weight	kg	20/100
Weight (instruments)	kg	120	140	180	240
