Dantsin-SYLVAC OPTICAL MEASUREMENT -SCAN S145

Spec:

OPTICAL MEASUREMENT SYLVAC-SCAN S145

Scope:

Availability: 2025 - 07 - 25

Describe:

Explain:

OPTICAL MEASUREMENT SYLVAC-SCAN S145Discover our brand new optical machines SCAN S145 and SCAN S145L incorporating the latest technology and our easy to use Ref lex-Scan+ software, including our renowned, patented Reflex-Click technology for one click measurement of cylindrical parts without preprogramming. PRODUCT SUMMARY The Sylvac-Scan S145 optical measuring centre developed to measure mid to large sized cylindrical parts up to 145mm diameter and 1280mm in length. Our Sylvac-Scan S145 offers, fast, accurate and repeatable measurements of cylindrical parts, an ergonomic machine, equipped with quick release tooling and motorised tailstock, offering an automation ready machine. Sylvac-Scan machines are suitable shop floor use, with integrated temperature sensors and on board calibration ...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

OPTICAL MEASUREMENT SYLVAC-SCAN S145

Dantsin Discover our brand new optical machines SCAN S145 and SCAN S145L incorporating the latest technology and our easy to use Ref lex-Scan+ software, including our renowned, patented Reflex-Click technology for one click measurement of cylindrical parts without preprogramming.

PRODUCT SUMMARY

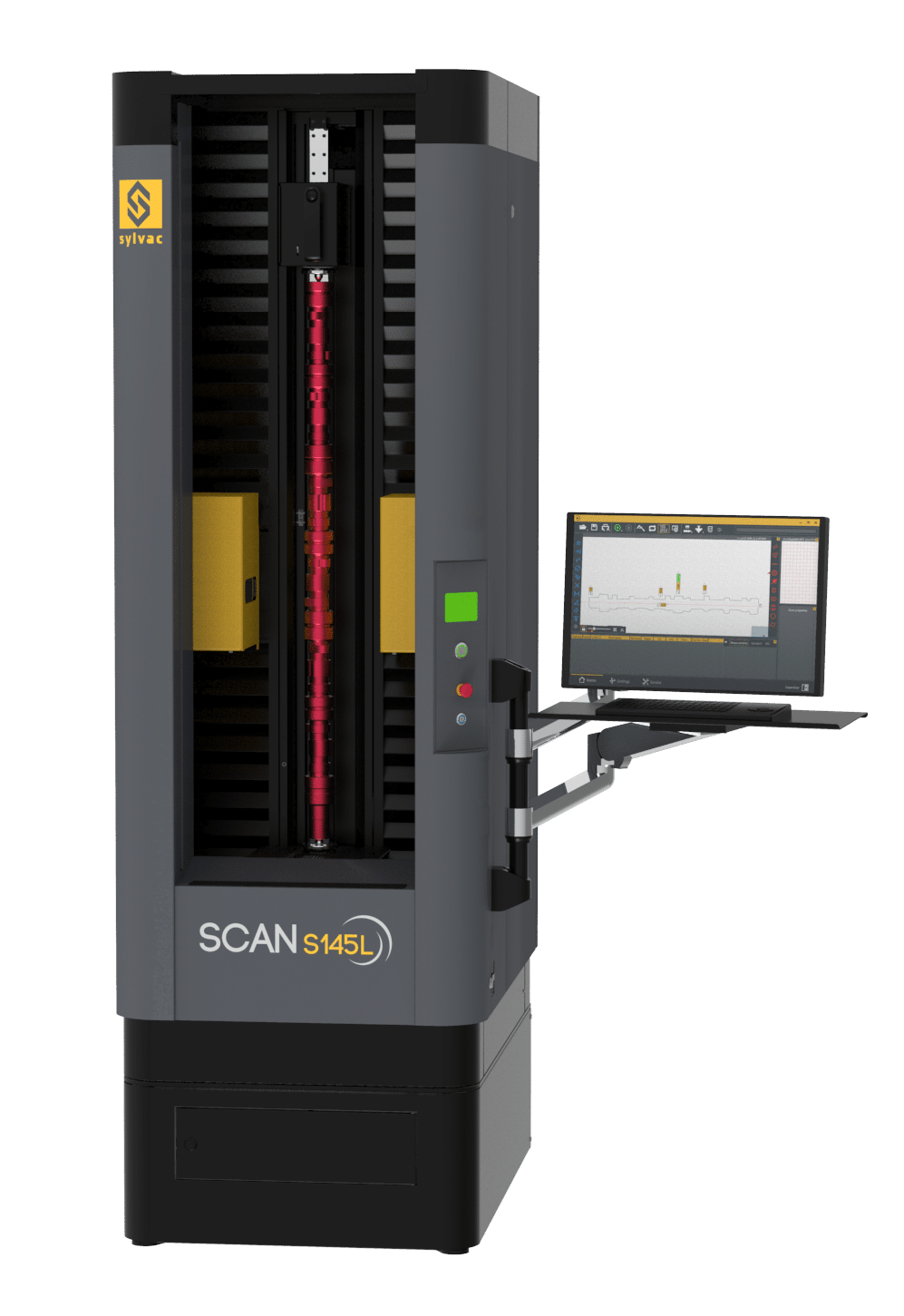

The Sylvac-Scan S145 optical measuring centre developed to

measure mid to large sized cylindrical parts up to 145mm

diameter and 1280mm in length. Our Sylvac-Scan S145 offers,

fast, accurate and repeatable measurements of cylindrical

parts, an ergonomic machine, equipped with quick release

tooling and motorised tailstock, offering an automation ready

machine. Sylvac-Scan machines are suitable shop floor use,

with integrated temperature sensors and on board calibration

master, ensuring optimum performance.

Dantsin

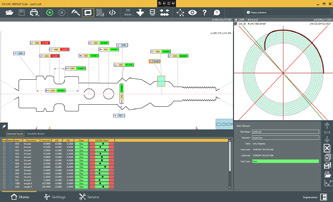

Easy to use Reflex-Scan+ software platform, which includes

the renowned Reflex-Click technology, offering one click mea

surement, part recognition and auto-measure. Reflex-Scan+

software, easy to use, yet powerful, with a comprehensive

suite of measurement features for complex parts, including

detailed reports, statistic view, data export and SPC connec

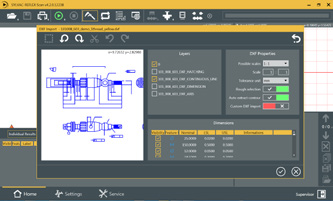

tivity. Optional CAD import / export software and comparative

measurements, custom features wizard and available with

offline programming.

Dantsin

FEATURES

· Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of large cylindrical parts up tp 100kg. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 615mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.

· Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

· Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.

· Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

OPTICAL MEASUREMENT SYLVAC-SCAN S145
