Products Product Details

You are here : Home → PRODUCTS → Aberlink-CMM

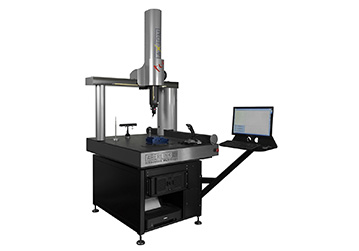

Dantsin-Aberlink-Axiom too CNC CMM

Spec:

Technical Information Axis Travel (mm)X 300Y 300Z 200Overall Size (mm)X 770Y 860Z 2025 (when on bench)*Volumetric Accuracy3µm + L/250mmmScale Resolution0.5µmOperational Temp Range0 - 40°CTableSolid granite plateMax. Velocity Vector750mm/secMax. Acceleration Vector750mm/sec²Air ConsumptionNoneRequired Air PressureNot required

Scope:

Availability: 2021 - 03 - 22

Describe:

Technical InformationAxis Travel (mm)X 300Y 300Z 200Overall Size (mm)X 770Y 860Z 2025 (when on bench)*Volumetric Accuracy3µm + L/250mmmScale Resolution0.5µmOperational Temp Range0 - 40°CTableSolid granite plateMax. Velocity Vector750mm/secMax. Acceleration Vector750mm/sec²Air ConsumptionNoneRequired Air PressureNot required

Explain:

Axiom too CNC CMMAxiom too CNC - Shop Floor CMMThe Axiom too range of affordable high-performance CNC CMMs are ideal for volume production. The high quality shop floor design features Aberlink's easy-to-use software plus the flexibility of touch probe and non-contact inspection using the optional Aberlink CMM camera.Fast, accurate and reliable, the Axiom too CNC CMM comes in four different sizes with Y axis travel up to 1500mm. The Axiom too can be used withtouch trigger probe, continuous contact scanning probe or with Aberlink’s revolutionary non-contact camera system.The all aluminium bridge structure not only ensures that the Axiom too has low inertia and high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature ...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Axiom too CNC CMM

Axiom too CNC - Shop Floor CMM

The Axiom too range of affordable high-performance CNC CMMs are ideal for volume production. The high quality shop floor design features Aberlink's easy-to-use software plus the flexibility of touch probe and non-contact inspection using the optional Aberlink CMM camera.

Fast, accurate and reliable, the Axiom too CNC CMM comes in four different sizes with Y axis travel up to 1500mm. The Axiom too can be used withtouch trigger probe, continuous contact scanning probe or with Aberlink’s revolutionary non-contact camera system.

The all aluminium bridge structure not only ensures that the Axiom too has low inertia and high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20°C/68°F.The standard high-tech granite and aluminium table, originally developed for the optics industry, provides fantastic natural damping of high frequency vibration and the granite Y rail allows pre-loading of the bridge air bearings in both directions for superior accuracy.

Key Features

·Aberlink's revolutionary easy-to-use measurement software
·Shortest learning curve of any equivalent system - 1 day without prior CMM experience
·Smallest overall footprint of any comparable size CMM
·Choice of Y axis sizes ranging from 600mm to 1500mm
·Suitable for the workshop environment
·Protection from environmental vibrations as standard
·Optimised friction free air bearings, all aluminium bridge and granite table
·Free stylus change rack with every motorised probe head upgrade

Application

Technical Information

Axis Travel (mm)	X 300 Y 300 Z 200
Overall Size (mm)	X 770 Y 860 Z 2025 (when on bench)
*Volumetric Accuracy	3µm + L/250mmm
Scale Resolution	0.5µm
Operational Temp Range	0 - 40°C
Table	Solid granite plate
Max. Velocity Vector	750mm/sec
Max. Acceleration Vector	750mm/sec²
Air Consumption	None
Required Air Pressure	Not required
