You are here : Home → PRODUCTS → Aberlink-CMM

Dantsin-Aberlink Horizon CMM

Spec:

SpecAxis Travel (mm) HorizonX 800Y 1000, 1600Z 600Overall Size (mm) HorizonX 1403Y 1530, 2130Z 2700Axis Travel (mm) Horizon LX 1000Y 1200, 2000Z 800Overall Size (mm) Horizon LX 1603Y 1830, 2630Z 3110, 3160MotionCNCStructureBridgeSuitable forInspection Room*Volumetric AccuracyTP20(1.8µm + L/350mm)TP200(1.7µm + L/350mm)SP25M(1.5µm + L/350mm)Scale Resolution0.1µm**Optimum Temp Range18 - 22°COperational Temp Range5 - 45°CMax. Velocity Vector1000mm/secMax. Acceleration Vector1000mm/sec²Air RequiredYesAir Consumption100 l/min (3.53 cfm)Required Air Pressure7 bar (100 psi)*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change 1°C/hr and 2°C/24hr. Tempe...

Scope:

Availability: 2025 - 06 - 09

Describe:

Explain:

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Horizon CMM

CNC CMM

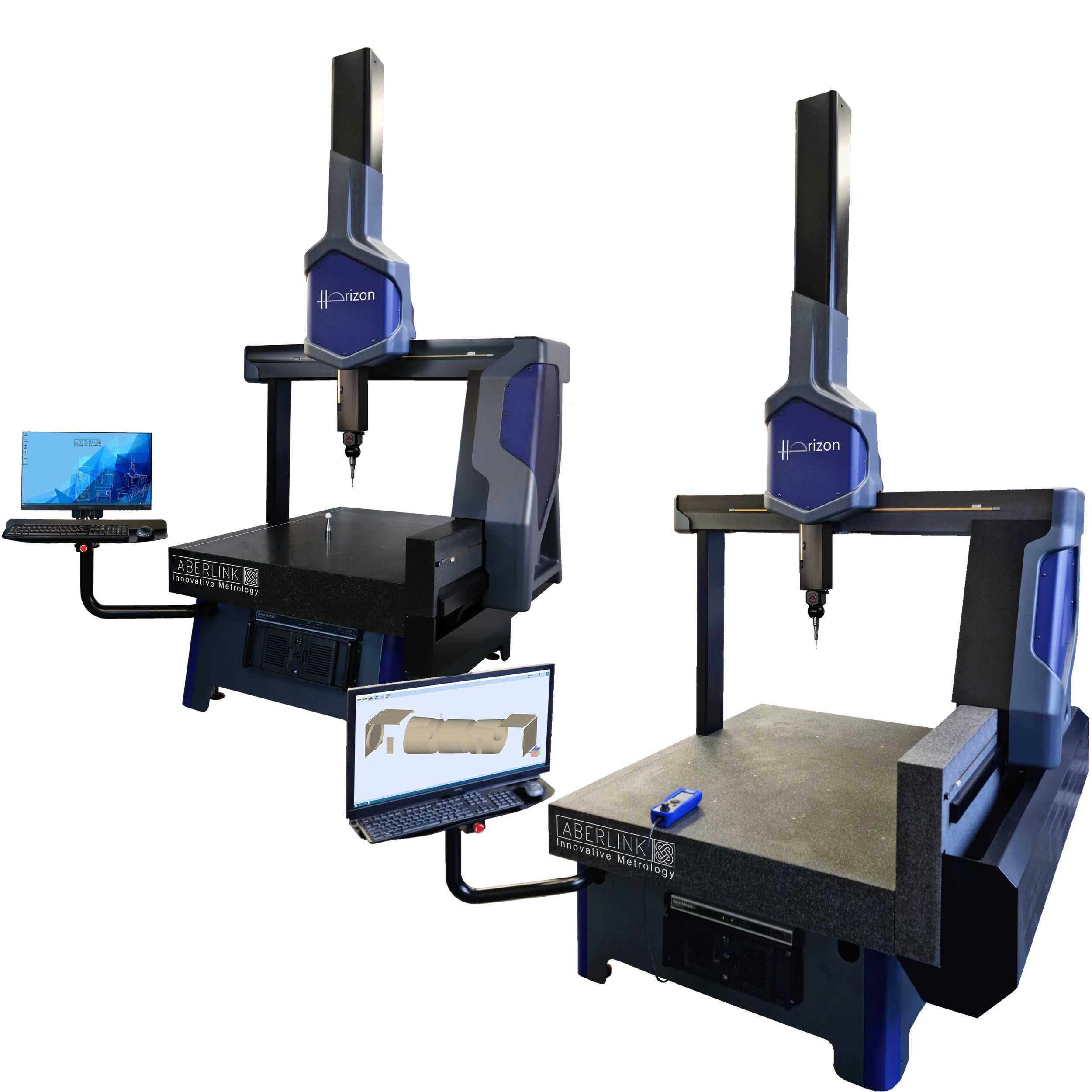

Dantsin-Aberlink Horizon CMM Starting The Linear Drive Revolution

The Horizon CMM breaks new ground in design and innovation using frictionless linear drives, which are the key to its fast and exceptionally smooth motion.

The granite table and granite Y-axis rail has been designed to take full advantage of the natural thermal density of this remarkable material. The Y-axis linear drive system has been positioned away from the Y-axis linear encoder so that the heat generated by the linear drive is absorbed by the granite without affecting metrology performance.

Extending The Linear Drive Horizon

Drawing upon the tremendous success of the Horizon, the Horizon L has a larger X-Y-Z axis travel whilst utilising the same frictionless linear drives.

The entire design of the Horizon L has been optimised to take full advantage of parts already used on the Horizon whilst improving the stiffness-to-weight ratio across the bridge assembly. Most notably: The Y-axis rail is 200mm taller so that the same right-hand-side linear drive system is common and improves rigidity; the carriage assembly has reduced in size and weight, without compromising metrology performance, to improve the stiffess-to-weight ratio; the Z-axis motor has increased power to optimise its performance; the left-hand-side air bearing assembly has a custom extruded profile to keep weight to an absolute minimum and maintain stiffness.

Features

• Linear motors offer frictionless, smooth, silent motion

• Thermal isolation of motors from metrology structure

• Smooth motion ideal for contact scanning

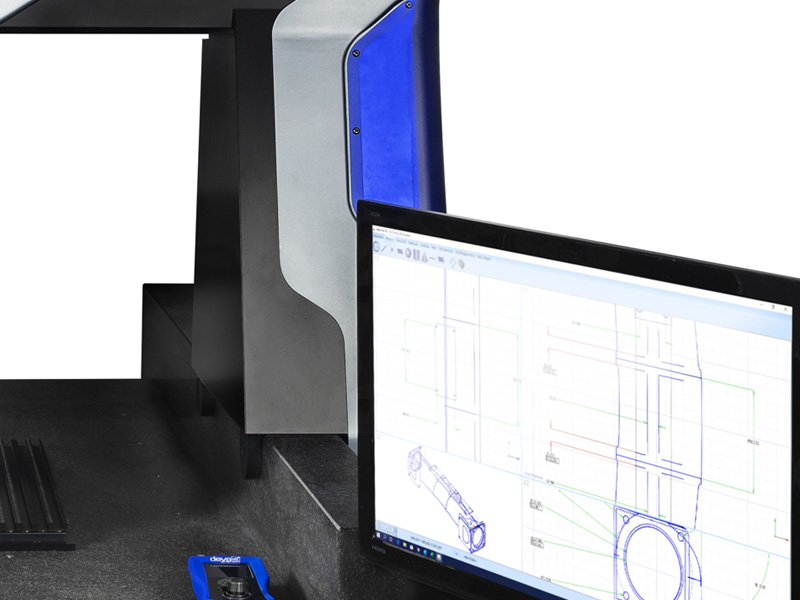

• Aberlink's revolutionary easy-to-use measurement software

• Shortest learning curve of any equivalent system - 1 day without prior CMM experience

• Choice of Y axis sizes ranging from 1000mm to 1600mm

• Suitable for the workshop environment

• Industrial joystick supplied as standard

• Free stylus change rack with every motorised probe head upgrade

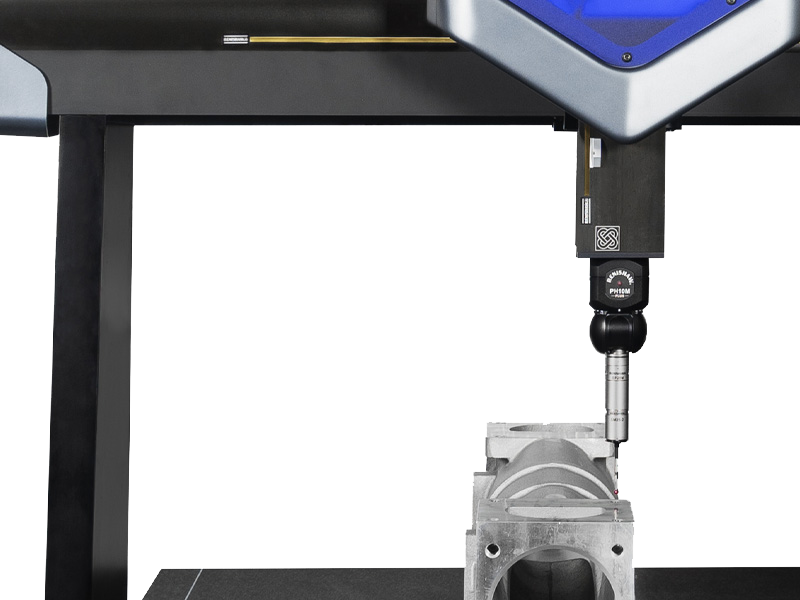

High-performance, High-accuracy

The Horizon is a standout machine with fast, smooth, silent motion ideally suited to contact scanning and with a first-term accuracy specification of under two microns.

Unrivalled Reliability

Linear motors are non-contact and therefore have no wearing parts and thus provide the perfect solution for CMM drives, improving reliability and reducing maintenance.

Spec

Axis Travel (mm) Horizon	X 800 Y 1000, 1600 Z 600
Overall Size (mm) Horizon	X 1403 Y 1530, 2130 Z 2700
Axis Travel (mm) Horizon L	X 1000 Y 1200, 2000 Z 800
Overall Size (mm) Horizon L	X 1603 Y 1830, 2630 Z 3110, 3160
Motion	CNC
Structure	Bridge
Suitable for	Inspection Room
*Volumetric Accuracy	TP20 (1.8µm + L/350mm) TP200 (1.7µm + L/350mm) SP25M (1.5µm + L/350mm)
Scale Resolution	0.1µm
**Optimum Temp Range	18 - 22°C
Operational Temp Range	5 - 45°C
Max. Velocity Vector	1000mm/sec
Max. Acceleration Vector	1000mm/sec²
Air Required	Yes
Air Consumption	100 l/min (3.53 cfm)
Required Air Pressure	7 bar (100 psi)

*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
