MasterScanner XPL

In 1984, IAC inveted the 2D Scanning technique. The company became a worldwide
operating manufacturer of advanced geometrical measuring instrumentsand measuring machines for the calibration of thread gauges and is creator ofcustom solutions for a wide range of special applications.

One of our successful products is the MasterScanner since 1995. Many well known world wide companies are relying for the traceability of their thread gauges on the high precision patented MasterScanner Technology of IAC.

The MasterScanner is the only measuring machine in the world calibrating full automatic all the thread parameters of a part or a
gauge in just a minute including comparison of the results with the dimensional tolerances of many popular standards. The Master Scanner is ISO 17025 accredited in many countries. IAC is manufacturing two series of MasterScanners:
· Series XP from thread sizes for watch makers until mid size2.3 in, 3,9 in or 6.3 in.

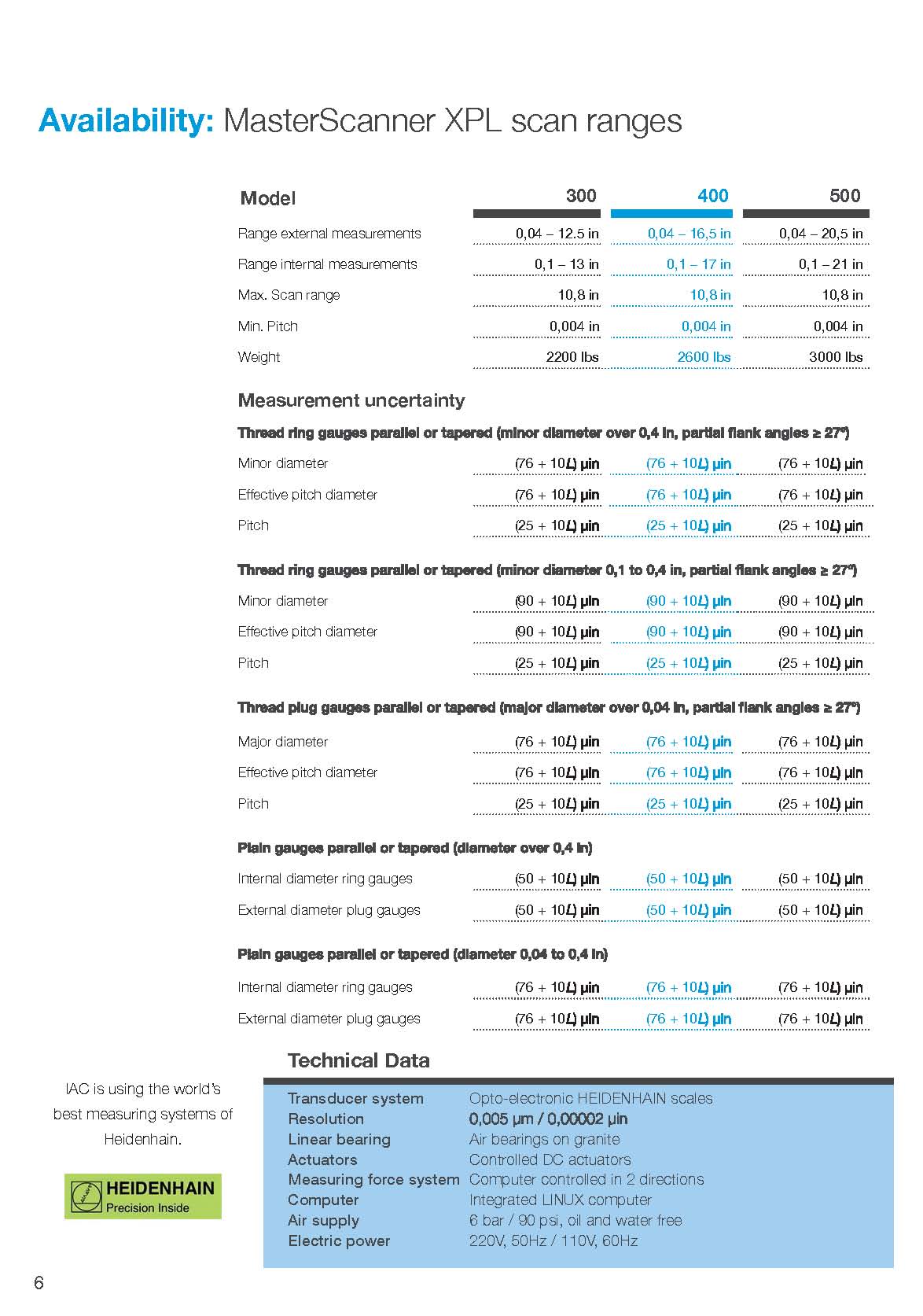

· Series XPL up to very large thread gauges: 21 in,e.g. for the oil and gas industry, or aero engines

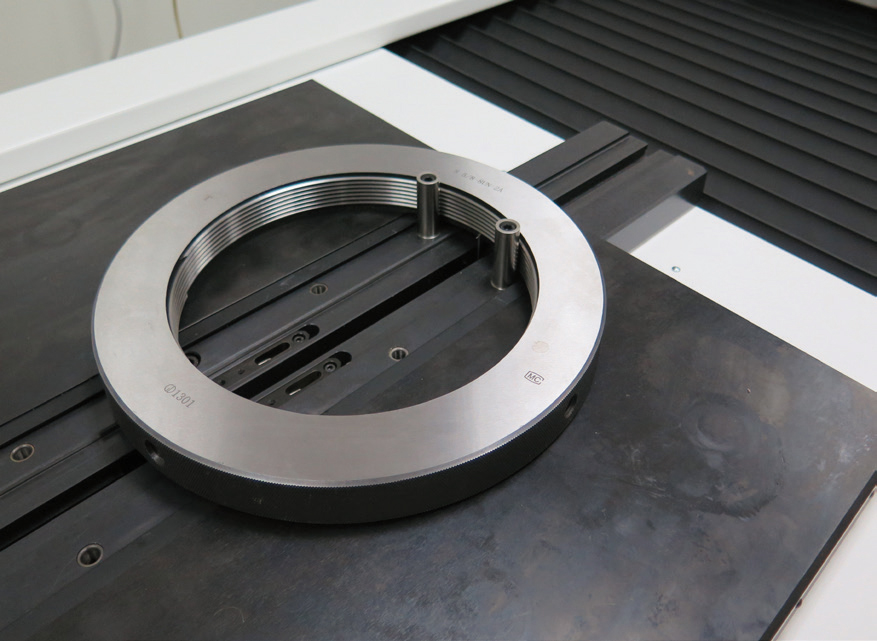

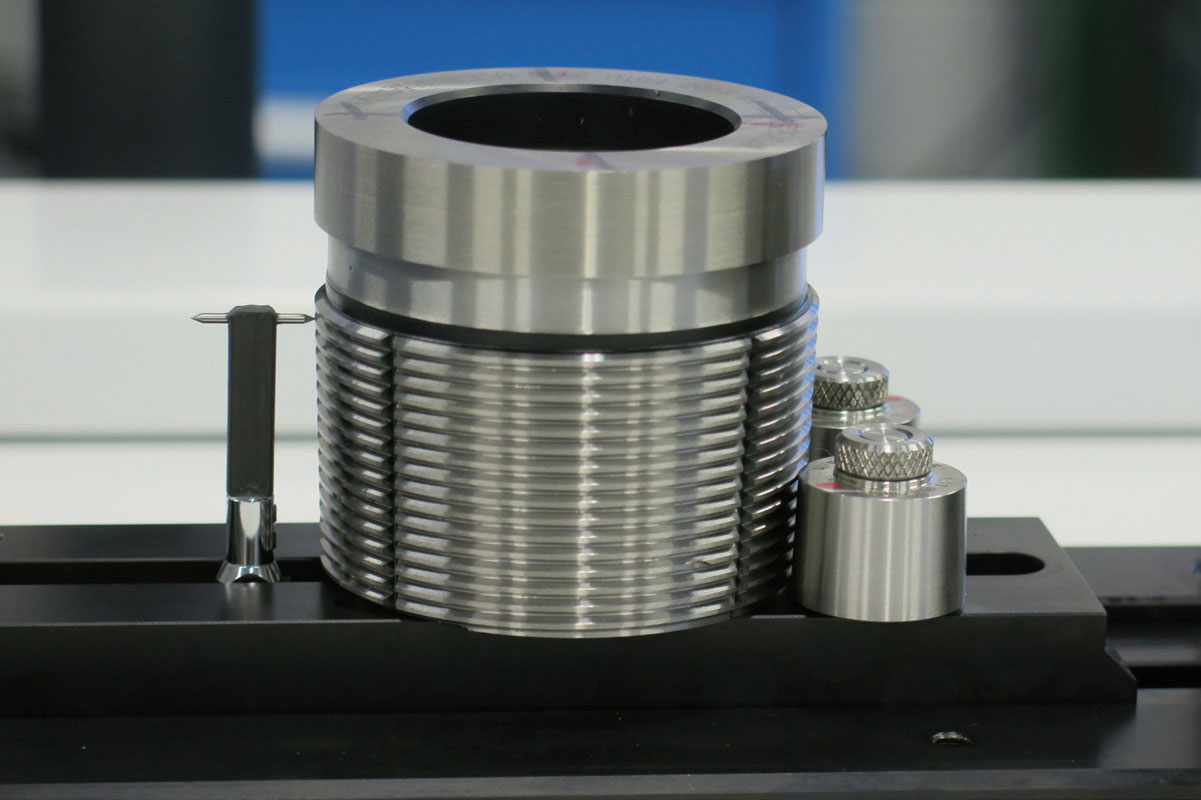

His excellent measurement uncertainty and sophisticated features make the MasterScanner the ideal instrument for calibration laboratories. Fast and reliable calibration has been made possible for a wide range of parallel or tapered thread gauge plugs, thread ring gauges, plain setting rings and plugs.
Many thread gauge makers all over the world also apply the scanner for their production control. The MasterScanner has the unique capability to present in one automatic cycle all the information that is necessary for the optimal setting of the machine tools.
