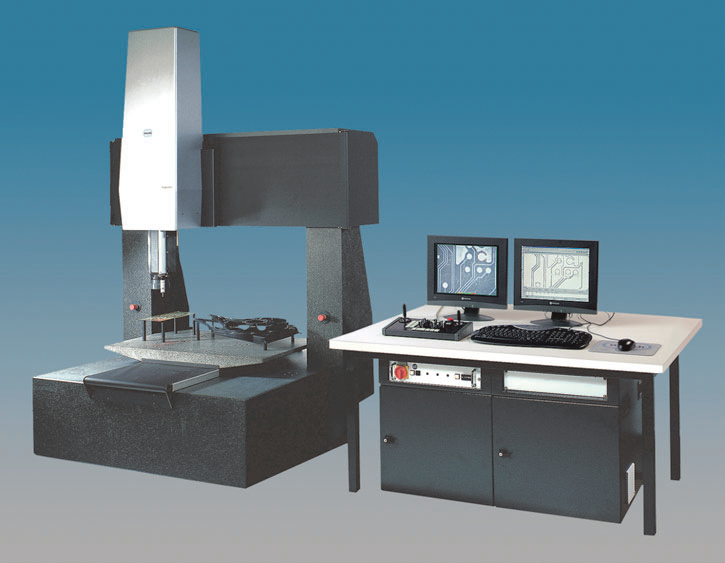

Dantsin Werth Inspector® FQ

Spec:

Werth Inspector® FQGeneral:Machine type: Fixed bridge-type multisensor coordinate measuring machineProbing system:Optical probing system: Image processing sensor, laserMechanical probing system: Trigger Probe, dynamic Probe, Fiber ProbeModes of operation: Continuous-path controlSoftware: Measuring program WinWerth®Operating system: MS Windows Technical Parameters： TypeInspector FQMeasuring range(X)400-1000mm(Y)400-1000mm(Z)200-300mm Maximum Permissible Error MPE(E1）(2.5+L(mm)/120)µm(E2）(2.9+L(mm)/100)µm(E3）(4.5+L(mm)/75)µmAssay precision optical magnification0.2X-100XResolution0.2µmWorkpiece weight150kg（300kg可选）Positioning speed1m/sAcceleration10m/s2Frequency48-62HzWeight1500-6000kgEnvironmental conditions to ensure accuracy20℃±2 o Δ...

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

Werth Inspector® FQThe new generation of the Inspector typesystems – now for direct use in the production environment.Highest positioning speed due to wear free linear drives.Mechanical bearings for rough environmental conditions.Universal measuring machine for fully automatic determination of three dimensional geometries.Modular structure of the system guarantees customized solutions for individual measuring tasks.Highly accurate measuring stage.Distortion free telecentric optics for image.processing (options of 0.2x–100x).Zoom optics are option.Contour image processing for fully automatic measuring of basic and non geometrical elements.WinWerth® SoftwareIntegration of further sensor units to a multi-sensor system guarantee higher flexibility and measuring speed.Fast video autof...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Werth Inspector® FQ

The new generation of the Inspector type
systems – now for direct use in the production environment.
Highest positioning speed due to wear free linear drives.
Mechanical bearings for rough environmental conditions.
Universal measuring machine for fully automatic determination of three dimensional geometries.
Modular structure of the system guarantees customized solutions for individual measuring tasks.
Highly accurate measuring stage.
Distortion free telecentric optics for image.
processing (options of 0.2x–100x).
Zoom optics are option.
Contour image processing for fully automatic measuring of basic and non geometrical elements.
WinWerth® Software
Integration of further sensor units to a multi-sensor system guarantee higher flexibility and measuring speed.
Fast video autofocus for Z-measurement.
High flexibility with variable illumation devices.
Fast CNC continuous-path control.

Werth Inspector® FQ

General:
Machine type: Fixed bridge-type multisensor coordinate measuring machine
Probing system:
Optical probing system: Image processing sensor, laser
Mechanical probing system: Trigger Probe, dynamic Probe, Fiber Probe
Modes of operation: Continuous-path control
Software: Measuring program WinWerth®
Operating system: MS Windows

Technical Parameters：

Type		Inspector FQ
Measuring range	(X)	400-1000mm
	(Y)	400-1000mm
	(Z)	200-300mm
Maximum Permissible Error MPE	(E1）	(2.5+L(mm)/120)µm
	(E2）	(2.9+L(mm)/100)µm
	(E3）	(4.5+L(mm)/75)µm
Assay precision optical magnification		0.2X-100X
Resolution		0.2µm
Workpiece weight		150kg（300kg可选）
Positioning speed		1m/s
Acceleration		10m/s²
Frequency		48-62Hz
Weight		1500-6000kg
Environmental conditions to ensure accuracy		20℃±2 ^oΔ=1^o/h
Temperature		10-35℃
