Products Product Details

You are here : Home → PRODUCTS → Metkon Catalogues

Dantsin-Metkon ECOPRESS 102/202

Spec:

Scope:

Mounting

Availability: 2021 - 03 - 22

Describe:

Explain:

ECOPRESS 102/202 are high capacity, state of the art automatic mounting presses having advanced software with programmable coloured HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Wide selection of mould assemblies from 25 to 50 mm in diameter are available. Two mounts can be produced simultaneously with the use of an intermediate ram. ECOPRESS 202, available with dual cylinder can produce four mounts at a time offering a perfect solution for labs with high specimen throughput. Powerful Heating Unit1650 W of thermostatically controlled powerfull heating unit to keep the molding times at a minimum. Intermediate RamAllows to double your throughput with the included ...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Dantsin-Metkon ECOPRESS 102/202

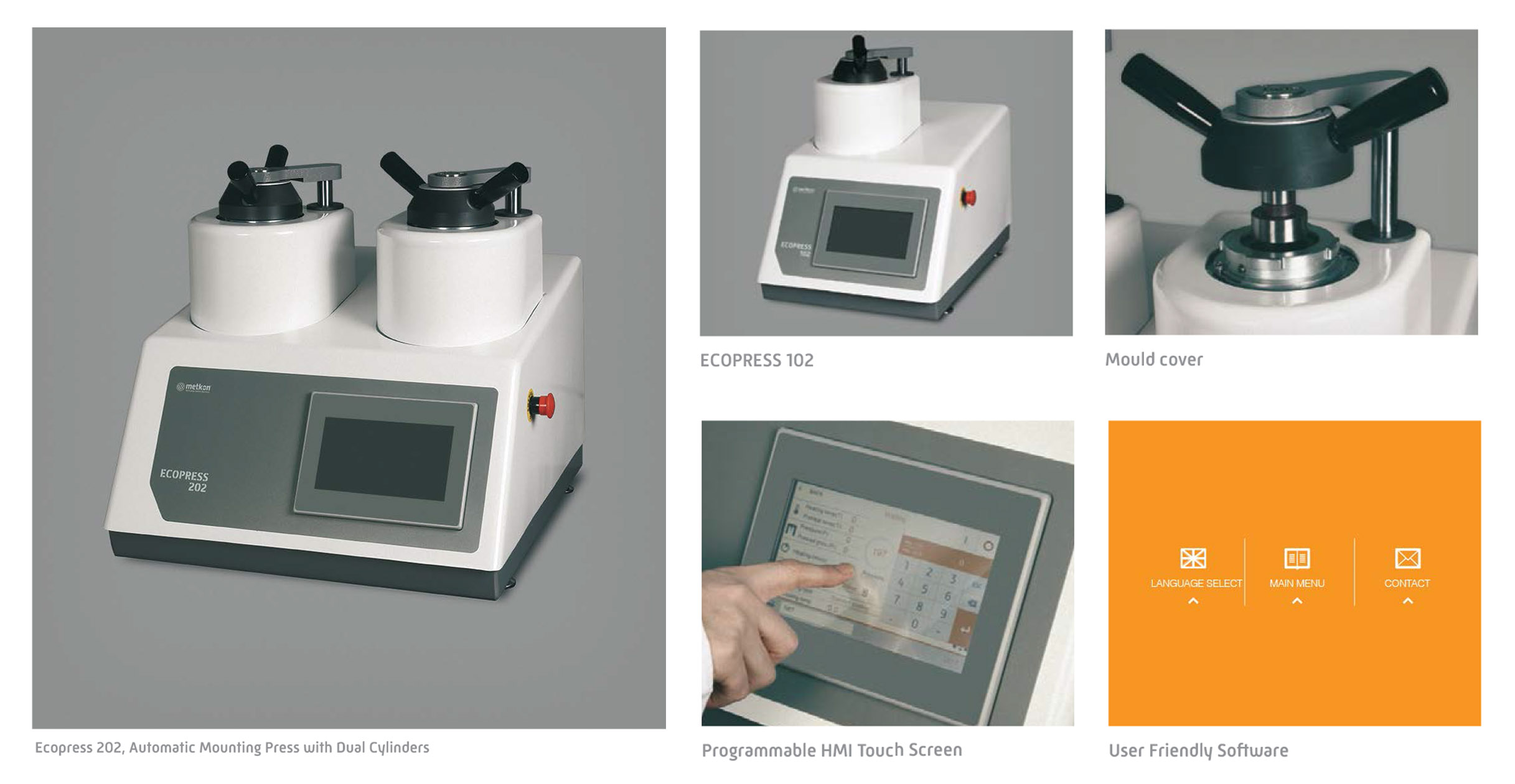

ECOPRESS 102/202 are high capacity, state of the art automatic mounting presses having advanced software with programmable coloured HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Wide selection of mould assemblies from 25 to 50 mm in diameter are available. Two mounts can be produced simultaneously with the use of an intermediate ram.

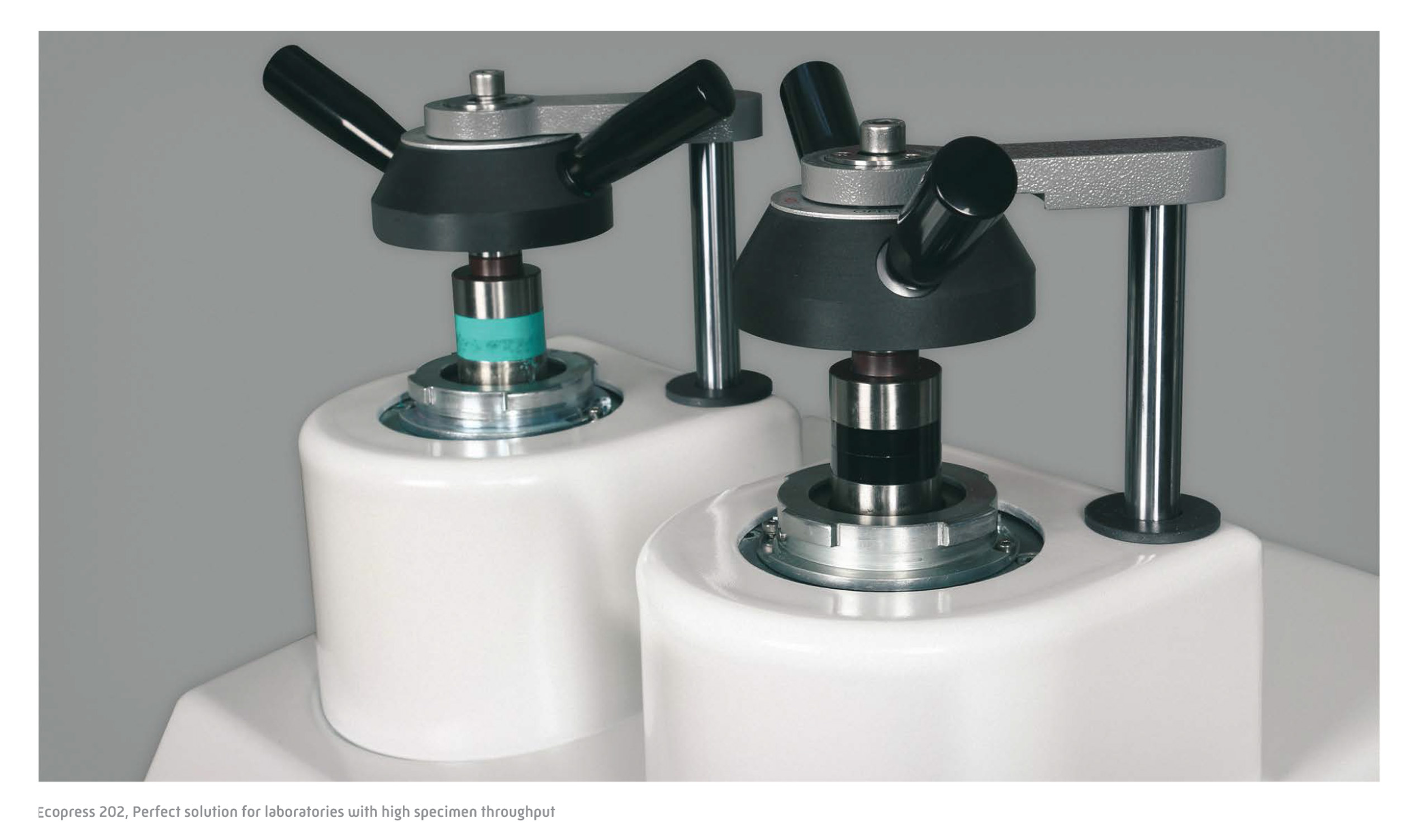

ECOPRESS 202, available with dual cylinder can produce four mounts at a time offering a perfect solution for labs with high specimen throughput.

Powerful Heating Unit

1650 W of thermostatically controlled powerfull heating unit to keep the molding times at a minimum.

Intermediate Ram

Allows to double your throughput with the included intermediate ram at the same cycle.

Chamfered Ram

Eliminates sharp edges on the mounts, thus increases life of grinding & polishing discs.

Dantsin-Metkon ECOPRESS 102/202
