Dantsin-Metkon GEOCUT 302/102

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

GEOCUT 302 GEOCUT 302 is an Advanced Geological Cutting Machine that is ideal for sectioning of rocks, ceramics, minerals, glass, concrete and geological specimens.• Modern and sturdy design• Extraordinary access for easy handling• Ability to use Ø250/300 mm diamond blade.• Cutting capacity up to 110 mm in diameter.• X-Y Cross table is available as standard for parallel and serial cutting.• Linear Table Feed and Chop Cutting methods• Various Clamping systems available for small to large size or irregular sample shapes.GEOCUT 102 GEOFORM 102 is a bench-top thin sectioning instrument that will cut and grind down to 30 microns or less depending on the hardness of the material because; mineralogical specimens usually contain hard an...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

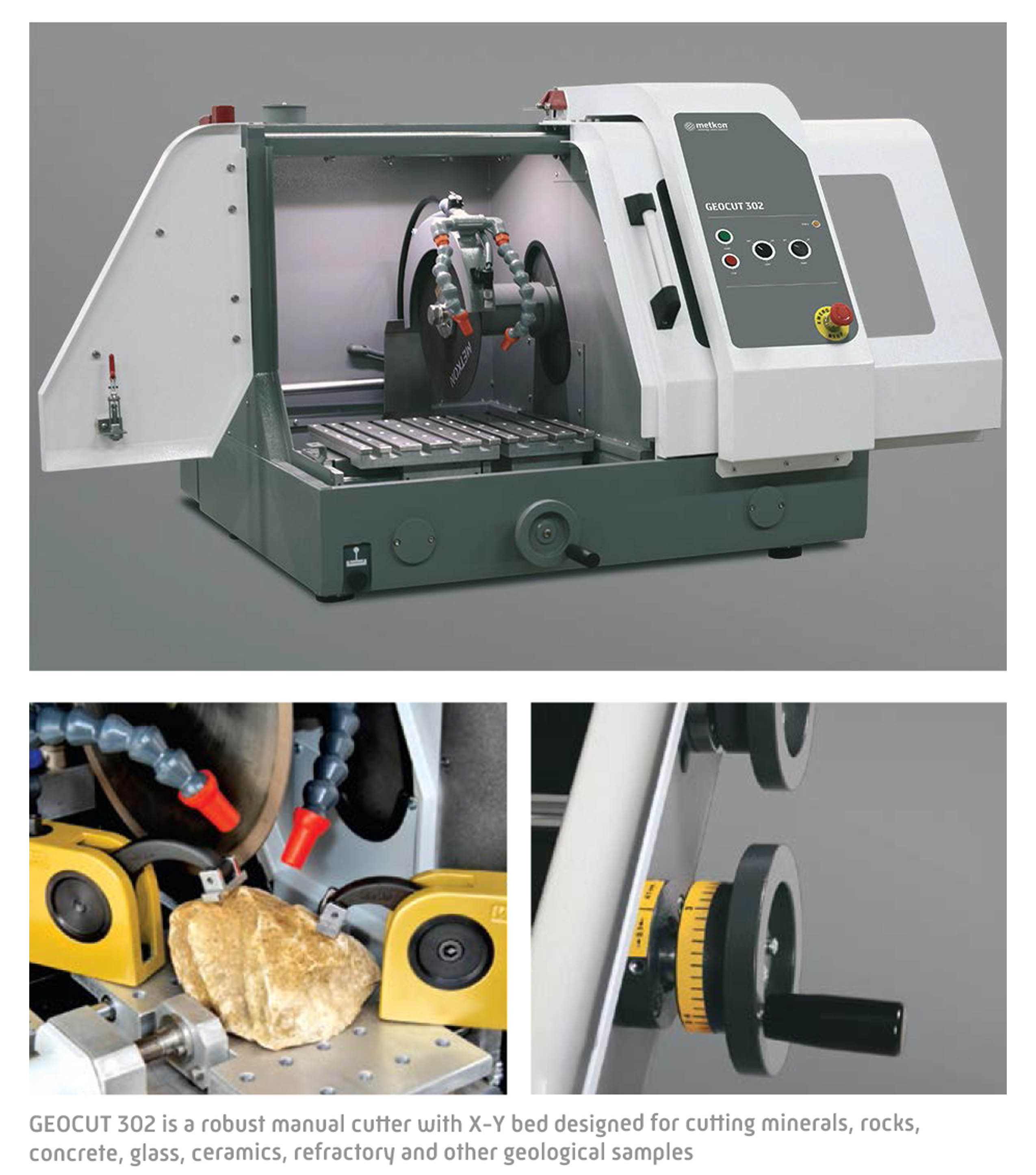

GEOCUT 302

Dantsin-Metkon Geocut

GEOCUT 302 is an Advanced Geological Cutting Machine that is ideal for sectioning of rocks, ceramics, minerals, glass, concrete and geological specimens.

• Modern and sturdy design

• Extraordinary access for easy handling

• Ability to use Ø250/300 mm diamond blade.

• Cutting capacity up to 110 mm in diameter.

• X-Y Cross table is available as standard for parallel and serial cutting.

• Linear Table Feed and Chop Cutting methods

• Various Clamping systems available for small to large size or irregular sample shapes.

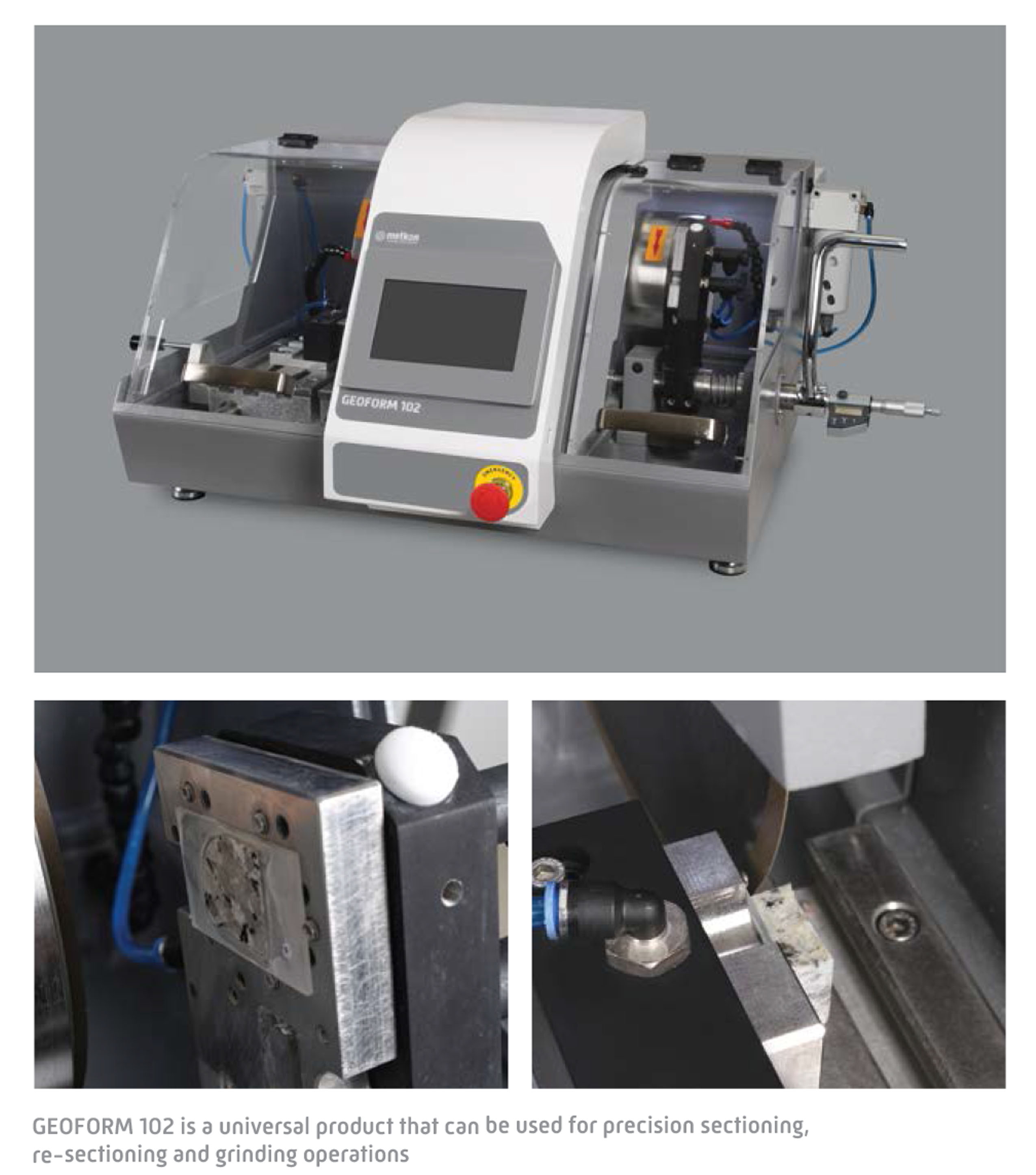

GEOCUT 102

Dantsin-Metkon Geocut

GEOFORM 102 is a bench-top thin sectioning instrument that will cut and grind down to 30 microns or less depending on the hardness of the material because; mineralogical specimens usually contain hard and soft phases. GEOFORM 102 has two parts: Cutting and Grinding compartments.

• Two machines are combined in the same body: Cutting and Thin Sectioning.

• Large cutting compartment with movable T-table

• Ability to mount clamping devices

• Colored LCD touch screen with advanced software

• Variable wheel speed, 500-2000 RPM

• Completely closed cutting and grinding compartment with transparent cover and magnetic safety switch

• Ability to fix glass slides with several different dimensions
