Dantsin-RPI QuadProfile

Spec:
Scope:
Availability: 2021 - 03 - 22
Describe:
Explain:
Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part  3 compliant.Precision rotary axes specifically developed to increase  the flexibility, productivity and efficiency of your CMM.The smallest rotary table in the Quadrant range that delivers high speed measurement of smaller parts such as inner engine blades and gears.Measurement Capacity: • Size Ø200mm • Overall height 175mm • Load capacities up to 100kgs • Rotation speed 10 rpm • Zero backlash drive • Angular accuracy 2 arc seconds • Angular repeatability 0.5 arc seconds
  • Description
  • Technical
    cification
  • Video
  • Success Case
  • Related Products

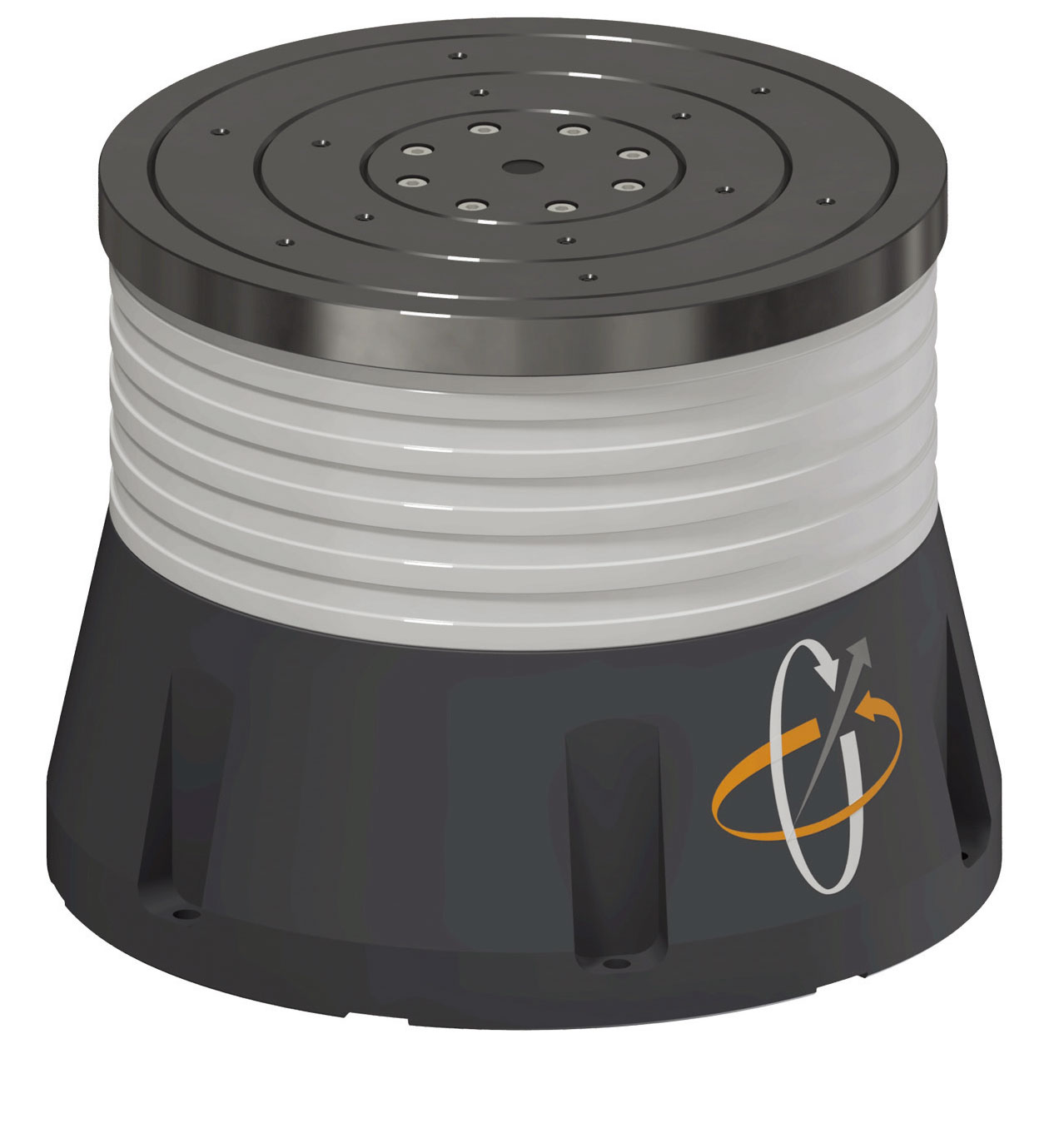

Dantsin-RPI QuadProfile

Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part  3 compliant.

Precision rotary axes specifically developed to increase  the flexibility, productivity and efficiency of your CMM.

The smallest rotary table in the Quadrant range that delivers high speed measurement of smaller parts such as inner engine blades and gears.

Measurement Capacity:

• Size Ø200mm

• Overall height 175mm

• Load capacities up to 100kgs

• Rotation speed 10 rpm

• Zero backlash drive

• Angular accuracy 2 arc seconds

• Angular repeatability 0.5 arc seconds
