You are here : Home → PRODUCTS → Height Gauges

V6

Spec:

TECHNICAL SPECIFICATIONSV64007001100Measuring rangemm (in)407 (16)711 (28)1110 (44)Measuring range with extensionmm (in)719 (28)1023 (40)1422 (56)Max. permissible errors, EMPEµm2 + L(mm)/400Repeatability, RMPE (2s)µm1 (Ø:2)Frontal squareness deviation, SMPEµm5811Maximal Resolutionmm (in)0.0001 (0.000005)Measuring forceN0.75 ÷ 1.5Autonomyh12InterfacesUSB / RS232Air cushionYesWeightkg212433

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

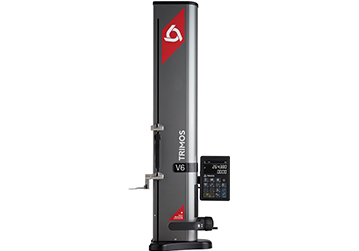

The vertical measuring instrument V6 is the descendant of the legendary V+ line, from which thousands of copies have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality. Trimos was the first to offer vertical measuring instruments on the market more than 40 years ago. The V6 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V6 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual i...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Trimos was the first to offer vertical measuring instruments on the market more than 40 years ago. The V6 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V6 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.

The design of the V6 with its side probe holders revives an old Trimos tradition: They enable measuring with long, robust probes guaranteeing an excellent repeatability.

Measuring ranges 400, 700 and 1100 mm
Extremely easy to use
Electronically adjustable measuring force
Manual or motor-driven displacement
Larger than 300 mm probes as standard
Vast range of accessories
All adjustments possible without tools
RS232 et USB interfaces

TECHNICAL SPECIFICATIONS

V6		400	700	1100
Measuring range	mm (in)	407 (16)	711 (28)	1110 (44)
Measuring range with extension	mm (in)	719 (28)	1023 (40)	1422 (56)
Max. permissible errors, EMPE	µm	2 + L(mm)/400
Repeatability, RMPE (2s)	µm	1 (Ø:2)
Frontal squareness deviation, SMPE	µm	5	8	11
Maximal Resolution	mm (in)	0.0001 (0.000005)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	12
Interfaces		USB / RS232
Air cushion		Yes
Weight	kg	21	24	33
