Products Product Details

You are here : Home → PRODUCTS → Inclination measuring instruments > Measuring instruments

Dantsin-Wyler BlueLevel

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

Dantsin-Wyler BlueLevelFor the BlueLEVEL, BlueLEVEL BASIC and MINILEVEL NT measuring instrumentsare various horizontal and angular measuring bases available. Depending on themeasuring tasks, each of them has its specific advantages.Short description of the different options:• Horizontal measuring base, prismatic - for measurements on horizontal surfacesand shafts• Horizontal measuring base, with dust grooves - particularly suitable for flatnessmeasurements on granite, length 150 and longer with 2 through holesfor screwing-on• Angular base made of cast iron, horizontal and vertical flat - for measurementson horizontal and vertical surfaces as well as for measuring the rectangularityof a measuring object• Angular base made of cast iron, horizontal and vertical prismatic - formeasurementson h...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

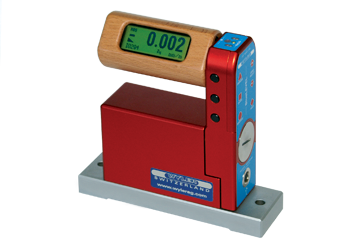

Dantsin-Wyler BlueLevel

For the BlueLEVEL, BlueLEVEL BASIC and MINILEVEL NT measuring instruments

are various horizontal and angular measuring bases available. Depending on the

measuring tasks, each of them has its specific advantages.

Short description of the different options:

• Horizontal measuring base, prismatic - for measurements on horizontal surfaces

and shafts

• Horizontal measuring base, with dust grooves - particularly suitable for flatness

measurements on granite, length 150 and longer with 2 through holes

for screwing-on

• Angular base made of cast iron, horizontal and vertical flat - for measurements

on horizontal and vertical surfaces as well as for measuring the rectangularity

of a measuring object

• Angular base made of cast iron, horizontal and vertical prismatic - formeasurements

on horizontal and vertical surfaces and shafts as well as for measuring

the rectangularity of a measuring object

• Most measuring bases can be ordered with magnetic inserts

• Further options on request
