You are here : Home → PRODUCTS → Inclination measuring instruments > Precision spirit levels

SCREW-ON SPIRIT LEVEL 66

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

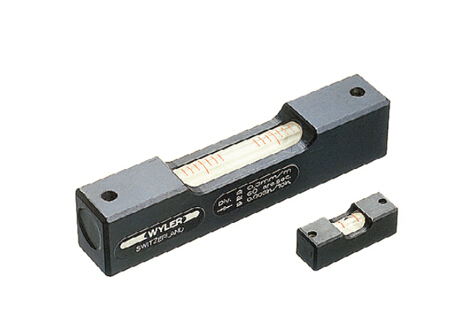

Description:SCREW-ON SPIRIT LEVEL 66 Execution:The vial of the SCREW-ON SPIRIT LEVEL 66 is firmly sealed in a stable steel body of cubic shape, outside gun-bluedThe SCREW-ON SPIRIT LEVEL 66, according to DIN877 + DIN2276/1, is available in various lengths and sensitivities (see specifications)The SCREW-ON SPIRIT LEVEL 66 is equipped with 2 through holes for mounting on a measuring objectWithout caseFunction:The SCREW-ON SPIRIT LEVEL 66 is specially designed for measurements on flat surfaces of machines, apparatus, etc. as well as for permanent mounting on measuring objectsSensitivity:See SpecificationsCalibration Certificate: The SCREW-ON SPIRIT LEVEL 66 can be delivered with an internationally recognised Calibration Certificate against a surcharge

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Description:

SCREW-ON SPIRIT LEVEL 66

Execution:

The vial of the SCREW-ON SPIRIT LEVEL 66 is firmly sealed in a stable steel body of cubic shape, outside gun-blued
The SCREW-ON SPIRIT LEVEL 66, according to DIN877 + DIN2276/1, is available in various lengths and sensitivities (see specifications)
The SCREW-ON SPIRIT LEVEL 66 is equipped with 2 through holes for mounting on a measuring object
Without case

Function:

The SCREW-ON SPIRIT LEVEL 66 is specially designed for measurements on flat surfaces of machines, apparatus, etc. as well as for permanent mounting on measuring objects

Sensitivity:

See Specifications

Calibration Certificate:

The SCREW-ON SPIRIT LEVEL 66 can be delivered with an internationally recognised Calibration Certificate against a surcharge
