Products Product Details

You are here : Home → PRODUCTS → Optical Shaft Measuring Machine

Dantsin-SYLVAC OPTICAL MEASUREMENT -SCAN F60LT

Spec:

Scope:

Availability: 2025 - 07 - 25

Describe:

Explain:

OPTICAL MEASUREMENT SYLVAC-SCAN F60LTFEATURES· Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of threads, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 64mm wide and 500mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.· Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a...

Catalog Download

Inquiry

Description

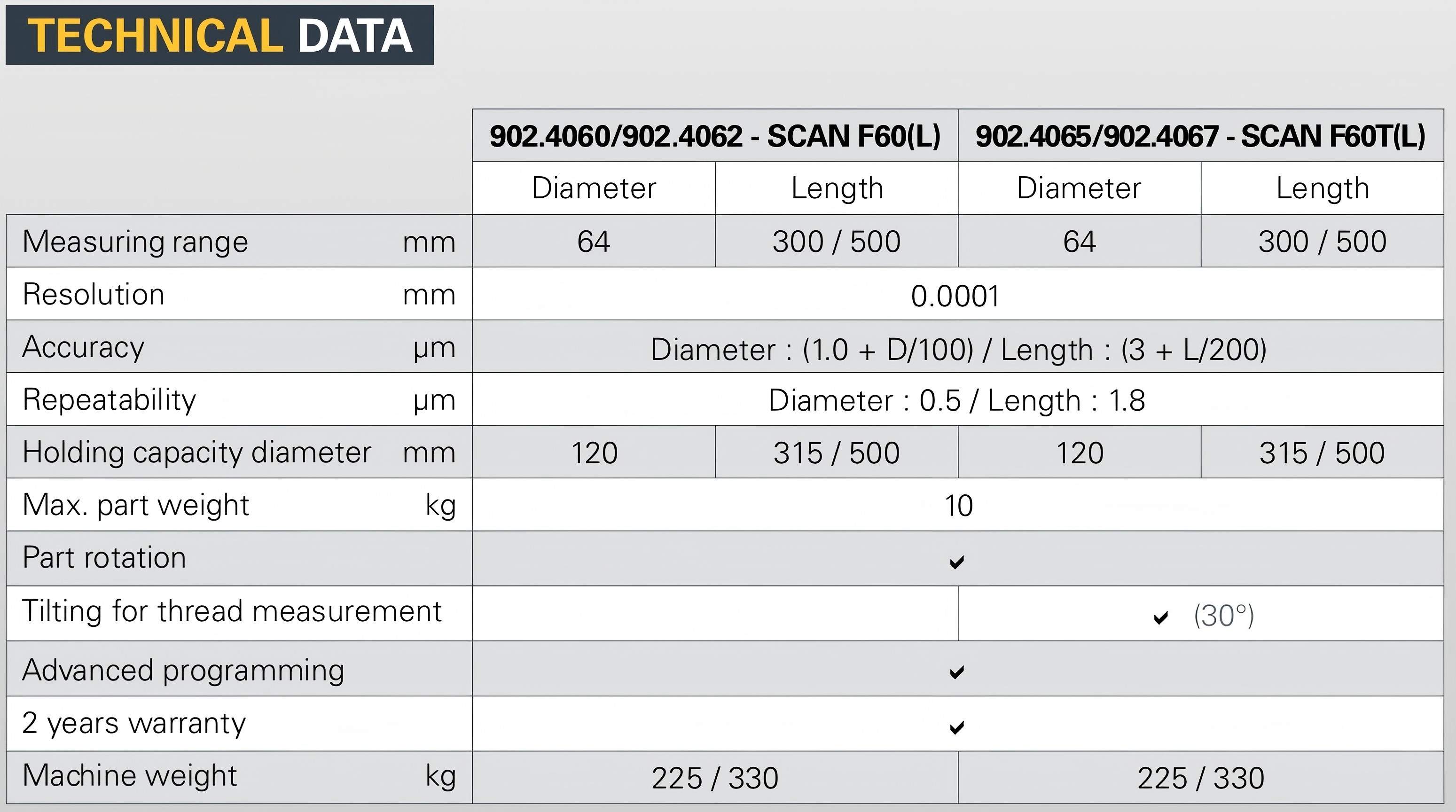

Technical
cification
Video
Success Case
Related Products

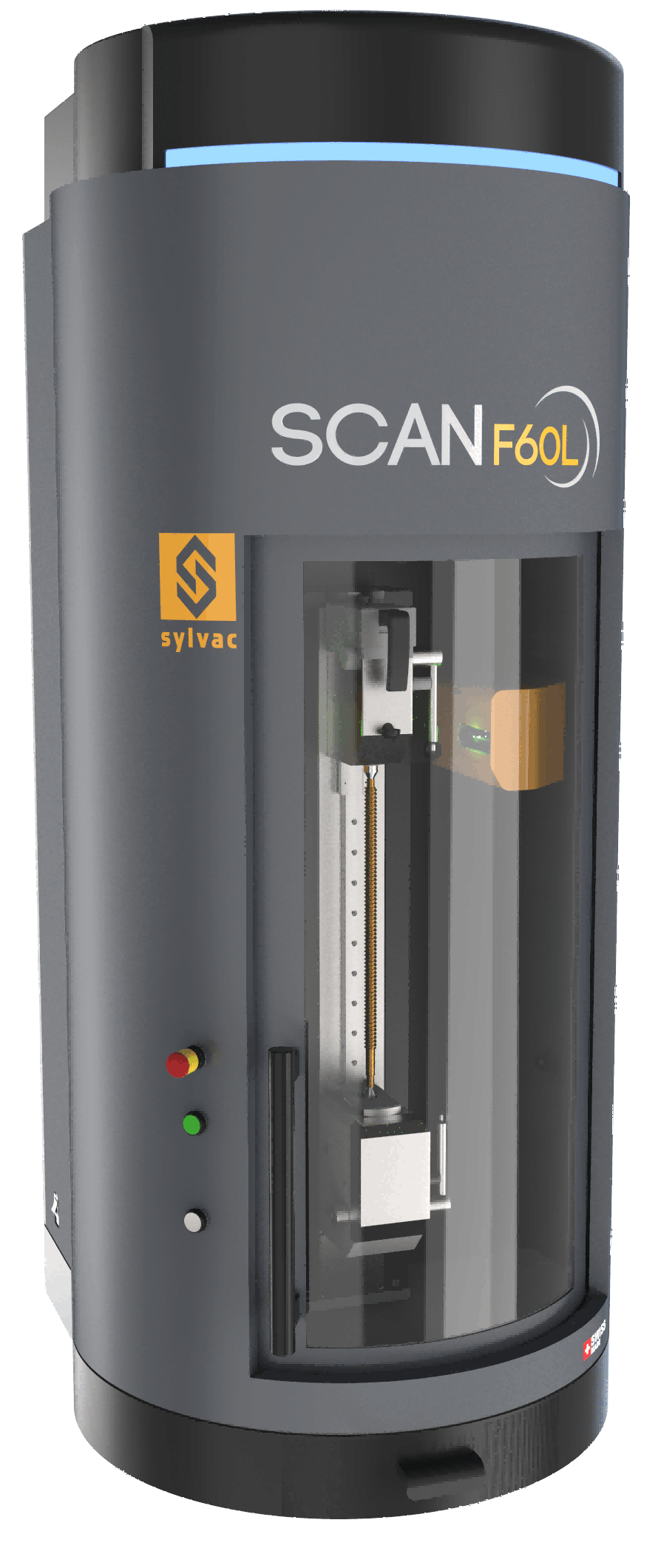

OPTICAL MEASUREMENT SYLVAC-SCAN F60LT

FEATURES

· Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of threads, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 64mm wide and 500mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.

· Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

· Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.

· Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.
