Products Product Details

You are here : Home → PRODUCTS → Aberlink-CMM

Dantsin-Aberlin-Axiom too Manual - Shop Floor CMM

Spec:

Technical InformationAxis Travel (mm)X 640Y 600, 900Z 500Overall Size (mm)X 1130Y 900, 1200Z 2320*Volumetric AccuracyTP20 (2.4 + 0.4L/100) µmScale Resolution0.5µm**Optimum Temp Range18 - 22°COperational Temp Range0 - 45°CTableHoneycomb aluminium & granite or solid graniteTable Load Capacity300kg (Honeycomb) or 500kg (Solid)Air Consumption50 l/min (1.8 cfm)Required Air Pressure4 bar (60 psi)

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

Axiom too Manual CMMThe complete shop floor inspection system.The Axiom too range of manual CMMs are an inexpensive solution for one off inspection. The high quality shop floor design features Aberlink's easy-to-use software and the unique option to upgrade to full CNC at any time.Accurate and reliable, the Axiom too Manual CMM comes in Y axis travel sizes of 600mm or 900mm and is supplied as a complete package with everything you need to start measuring parts from day one. The Axiom too can be used with touch trigger probe or with Aberlink’s revolutionary non-contact camera system.The all aluminium bridge structure ensures the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

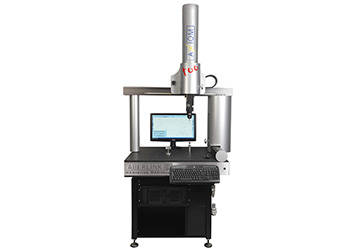

Axiom too Manual CMM

The complete shop floor inspection system.

The Axiom too range of manual CMMs are an inexpensive solution for one off inspection. The high quality shop floor design features Aberlink's easy-to-use software and the unique option to upgrade to full CNC at any time.

Accurate and reliable, the Axiom too Manual CMM comes in Y axis travel sizes of 600mm or 900mm and is supplied as a complete package with everything you need to start measuring parts from day one. The Axiom too can be used with touch trigger probe or with Aberlink’s revolutionary non-contact camera system.

The all aluminium bridge structure ensures the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20°C/68°F

The standard high-tech granite and aluminium table, originally developed for the optics industry, provides fantastic natural damping of high frequency vibration and the granite Y rail allows pre-loading of the bridge air bearings in both directions for superior accuracy.

A unique feature of the Axiom too Manual CMM allows the machine to be simply upgraded to CNC at any point, great for meeting expanding measurement requirements in the future, allowing you to economically increase your throughput and repeatability.

Technical Information

Axis Travel (mm)	X 640 Y 600, 900 Z 500
Overall Size (mm)	X 1130 Y 900, 1200 Z 2320
*Volumetric Accuracy	TP20 (2.4 + 0.4L/100) µm
Scale Resolution	0.5µm
**Optimum Temp Range	18 - 22°C
Operational Temp Range	0 - 45°C
Table	Honeycomb aluminium & granite or solid granite
Table Load Capacity	300kg (Honeycomb) or 500kg (Solid)
Air Consumption	50 l/min (1.8 cfm)
Required Air Pressure	4 bar (60 psi)

OPTICAL SURFACE MEASUREMENT——WATCHMAKING

2024 - 12 - 06

Fine Roughness measurement in WatchmakingDiscover the marriage of tradition and technology in watchmaking, powered by Trimos optical measurement instruments. Uncover how these state-of-the-art tools elevate fine roughness measurement, empowering watchmakers to uphold the highest standards of precision and craftsmanship in every timepiece.

Germany Black & how to solve the problem of measuring small modulus gear

2016 - 07 - 22

How to ensure the quality of the micro system micro-planetary gear? A multi-sensor coordinate measuring machine, a fiber optic probe, and a set of specialized software makes it possible - using the scanning operation can even be quickly and accurately measure the tooth profile surfaces in accordance with the most stringent standards. From -100 ℃ to + 200 ℃ of extreme temperatures, vibration, ...

Trimos instruments at China Railway High-speed (CRH)

2016 - 07 - 22

China Railway High-speed (CRH) is launching the new generation of trains using Trimos instruments: the LABCONCEPT Nano and Horizon Premium .CRH is the high-speed rail service operated by China Railway. All high-speed trains in commercial use in China are named CRH. The different models of CRH trains are expected to have a maximum speed of 250 km/h, 350 km/h, 416.6 km/h. The fastest trainset, CRH38...

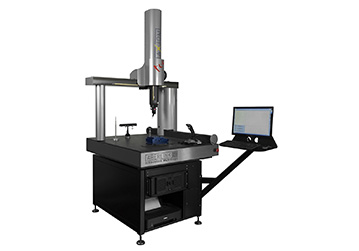

Dantsin-Aberlink-Axiom too CNC CMM

Technical Information Axis Travel (mm)X 300Y 300Z 200Overall Size (mm)X 770Y 860Z 2025 (when on bench)*Volumetric Accuracy3µm + L/250mmmScale Resolution0.5µmOperational Temp Range0 - 40°CTableSolid granite plateMax. Velocity Vector750mm/secMax. Acceleration Vector750mm/sec²Air ConsumptionNoneRequired Air PressureNot required

Release Time: 2016 - 05 - 26

Axiom too CNC CMMAxiom too CNC - Shop Floor CMMThe Axiom too range of affordable high-performance CNC CMMs are ideal for volume production. The high quality shop floor design features Aberlink's easy-to-use software plus the flexibility of touch probe and non-contact inspection using the optional Aberlink CMM camera.Fast, accurate and reliable, the Axiom too CNC CMM comes in four different sizes with Y axis travel up to 1500mm. The Axiom too can be used withtouch trigger probe, continuous contact scanning probe or with Aberlink’s revolutionary non-contact camera system.The all aluminium bridge structure not only ensures that the Axiom too has low inertia and high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature ...

Dantsin-Aberlink-Axiom too HS

Release Time: 2016 - 05 - 26

Axiom too HS CMMHigh Spec Shop Floor CMMThe Axiom too HS is the high specification variant of our acclaimed Axiom too CNC CMM. Through greater accuracy, higher acceleration and faster travel, the Axiom too HS makes inspection bottlenecks a thing of the past.Since 2004 the Axiom too CMM has been providing manufacturing industry with a fast and accurate solution for their measurement problems, but as ever, Aberlink are continually striving to improve the solutions which we offer. The Axiom too HS is both faster and more accurate than the standard model, and all without compromising the fantastic value for money for which Aberlink have become renowned.Rather than using the belt drive system, the Axiom too HS incorporates drive rod technology developed on our larger machines and vision product...

Dantsin-Aberlin-Axiom too Manual - Shop Floor CMM

Technical Information Axis Travel (mm)X 640Y 600, 900Z 500Overall Size (mm)X 1130Y 900, 1200Z 2320*Volumetric AccuracyTP20 (2.4 + 0.4L/100) µmScale Resolution0.5µm**Optimum Temp Range18 - 22°COperational Temp Range0 - 45°CTableHoneycomb aluminium & granite or solid graniteTable Load Capacity300kg (Honeycomb) or 500kg (Solid)Air Consumption50 l/min (1.8 cfm)Required Air Pressure4 bar (60 psi)

Release Time: 2016 - 06 - 30

Dantsin-Extol CNC CMM

Release Time: 2016 - 06 - 30

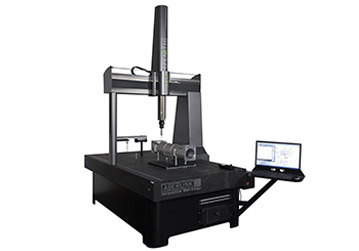

Dantsin-Zenith 3 - High Speed, Medium Volume Shop Floor CNC CMM

Release Time: 2016 - 06 - 30

Zenith 3 CNC CMMMaking large, precision measurements both simple and affordable. The Zenith 3 range is the best value-for-money for the measuring volume of any CMM available in the market - the perfect affordable metrology solution for big and heavy parts.Making large, precision measurements both simple and affordable.The Zenith 3 CNC CMM is the result of a design evolution of the award winning Zenith too range of machines, taking into account over 20 years of CMM design experience. Many of the design improvements revolve around the right leg of the machine, which has been modelled on the hugely successful Azimuth machine.Greater air bearing separation results in greater stiffness, and so has improved the accuracy significantly. The first term error for this new model is mor...

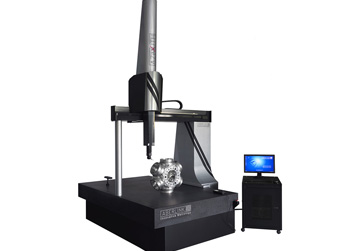

Dantsin-Azimuth - Rapid, High Accuracy Large Volume CMM
