You are here : Home → PRODUCTS → Surface Measuring Instruments > OPTICAL MEASUREMENT WITH TR SCAN PREMIUM

Dantsin Trimos TR-SCAN2D CCMP1

Spec:

Dantsin Trimos TR-SCAN2D CCMP1OPTICAL PROBECL1CL2CL3CL4CL5CL6Measuring Range130 µm400 µm1400 µm4000 µm12000 µm24000 µmWorking distance3.3 mm11 mm12.7 mm16.4 mm29 mm19.6 mmResolution8 nm22 nm60 nm130 nm400 nm780 nmMax slope+/-42.5°+/-28°+/-25°+/-21°+/-14°+/-8.5°Magnifer modelMG210MG140MG210MG140MG70MG140MG70MG35MG20MG35MG20MG35MG20Spot size in µm1.92.82.33.46.9488141425.51628Lateral resolution0.91.41.21.73.52447712.3814Photometric efficiency Hz5.8135.511.546145630764010019.248

Scope:

Availability: 2025 - 07 - 25

Describe:

Explain:

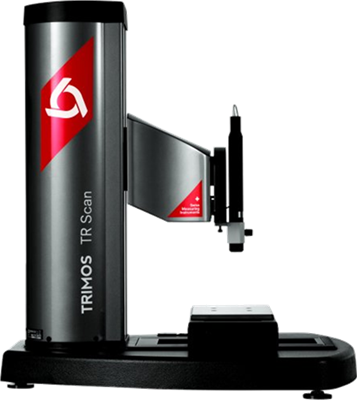

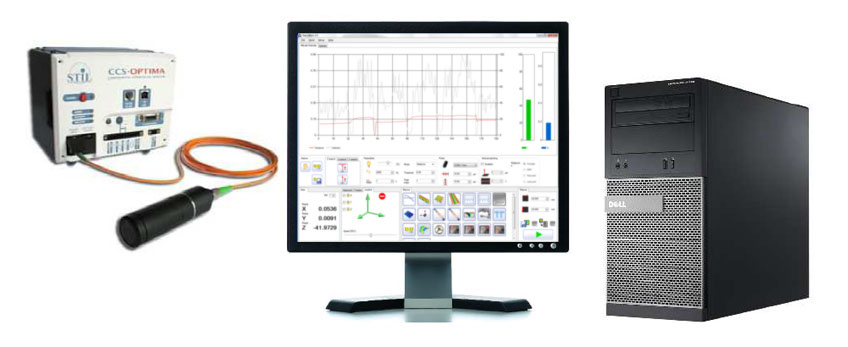

Dantsin Trimos TR-SCAN2D CCMP1PACK INCLUDINGTRSCAN with 2 CNC Axes ( Z / X )Confocal spectrometer BoxCL1 or CL2 ( 1 optical pen )1 Screen TFT 19”Standard PC Dell with Windows Seven 32 bits UltimateTrimos Measurement and Trimos Analysis LT 2D softwareApplication : Roughness in 2D (profile in 2D for all parts)Note : Not available for upgrade to 3D

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Dantsin Trimos TR-SCAN2D CCMP1

PACK INCLUDING

TRSCAN with 2 CNC Axes ( Z / X )
Confocal spectrometer Box
CL1 or CL2 ( 1 optical pen )
1 Screen TFT 19”
Standard PC Dell with Windows Seven 32 bits Ultimate
Trimos Measurement and Trimos Analysis LT 2D software

Application : Roughness in 2D (profile in 2D for all parts)

Note : Not available for upgrade to 3D

2D CCMP1 - Table

Dantsin Trimos TR-SCAN2D CCMP1

OPTICAL PROBE	CL1		CL2			CL3		CL4		CL5		CL6
Measuring Range	130 µm		400 µm			1400 µm		4000 µm		12000 µm		24000 µm
Working distance	3.3 mm		11 mm			12.7 mm		16.4 mm		29 mm		19.6 mm
Resolution	8 nm		22 nm			60 nm		130 nm		400 nm		780 nm
Max slope	+/-42.5°		+/-28°			+/-25°		+/-21°		+/-14°		+/-8.5°
Magnifer model	MG210	MG140	MG210	MG140	MG70	MG140	MG70	MG35	MG20	MG35	MG20	MG35	MG20
Spot size in µm	1.9	2.8	2.3	3.4	6.9	4	8	8	14	14	25.5	16	28
Lateral resolution	0.9	1.4	1.2	1.7	3.5	2	4	4	7	7	12.3	8	14
Photometric efficiency Hz	5.8	13	5.5	11.5	46	14	56	30	76	40	100	19.2	48
