Products Product Details

You are here : Home → PRODUCTS → Coordinate Measuring Machines

Dantsin Werth VideoCheck® IP 2400

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

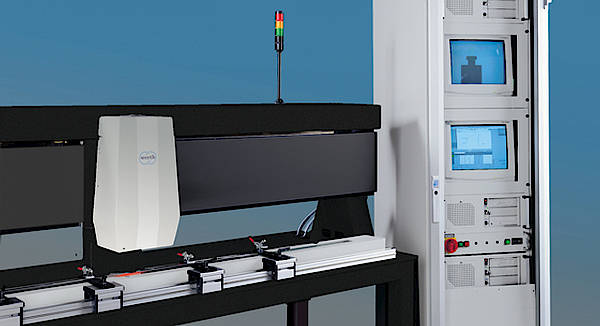

Werth VideoCheck® IP 2400 BauartMultisensor-Koordinatenmessgerät mit Standardkomponenten in Spezial-Bauweise. Höchste Positioniergeschwindigkeit durch verschleißfreie Linearantriebe in der X-Achse.MessbereicheX=2400mm; Y=100mm ; Z=100mm.SensorikWerth BildverarbeitungssensorAnwendungsgebieteMessen von Beschlägen für die Möbelindustrie

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

Werth VideoCheck^® IP 2400

Bauart	Multisensor-Koordinatenmessgerät mit Standardkomponenten in Spezial-Bauweise. Höchste Positioniergeschwindigkeit durch verschleißfreie Linearantriebe in der X-Achse.
Messbereiche	X=2400mm; Y=100mm ; Z=100mm.
Sensorik	Werth Bildverarbeitungssensor
Anwendungsgebiete	Messen von Beschlägen für die Möbelindustrie

OPTICAL SURFACE MEASUREMENT——WATCHMAKING

2024 - 12 - 06

Fine Roughness measurement in WatchmakingDiscover the marriage of tradition and technology in watchmaking, powered by Trimos optical measurement instruments. Uncover how these state-of-the-art tools elevate fine roughness measurement, empowering watchmakers to uphold the highest standards of precision and craftsmanship in every timepiece.

Germany Black & how to solve the problem of measuring small modulus gear

2016 - 07 - 22

How to ensure the quality of the micro system micro-planetary gear? A multi-sensor coordinate measuring machine, a fiber optic probe, and a set of specialized software makes it possible - using the scanning operation can even be quickly and accurately measure the tooth profile surfaces in accordance with the most stringent standards. From -100 ℃ to + 200 ℃ of extreme temperatures, vibration, ...

Trimos instruments at China Railway High-speed (CRH)

2016 - 07 - 22

China Railway High-speed (CRH) is launching the new generation of trains using Trimos instruments: the LABCONCEPT Nano and Horizon Premium .CRH is the high-speed rail service operated by China Railway. All high-speed trains in commercial use in China are named CRH. The different models of CRH trains are expected to have a maximum speed of 250 km/h, 350 km/h, 416.6 km/h. The fastest trainset, CRH38...

Dantsin Highest accuracy requirements-Werth VideoCheck UA

Release Time: 2016 - 08 - 17

Werth VideoCheck UAMeasurement in the Submicron Range - most accurate multi-sensor coordinate measuring machine worldwideDesign Ultra accurate fixed bridge multi-sensor CMM. Length measuring deviations lower than 0.3 µm.Measuring Range X=400mm; Y=400mm; Z=200/250mmAvailable Measuring Sensors High-precision Werth image processing (IP) video sensor,Werth chromatic distance sensor, touch trigger and dynamic scanning probes, Werth Fiber Probe, etc.Applications 3D micro components, miniature gears, gages and length standards, etc.Werth VideoCheck® UA:Highly Accurate (Ultra Accuracy) MultisensorCoordinate Measuring Machine in a“fixed bridge” design.Applications: Measurement of precision parts and 3D micro geometries.Highest measuring accuracy due touse of low-vibrating precision air-be...

Dantsin Werth VideoCheck® HA

Release Time: 2016 - 08 - 23

Werth VideoCheck® HAFixed bridge CMM« – highest precisionin production control and laboratoryMultisensor coordinate measuring machines for fully automatic determinationof geometries.High accuracy with precision air bearings and fine grained granite.Modular structure of the system guarantees customized solutions for individual measuring tasks.Telecentric precision lenses for the image processing system.Automatic change of magnification is provided with electronic digital zoom.Contour image processing for fully automatic measuring of basic and nongeometric elements.Integration of further sensor units (mechanical probing systems, WerthFiber Probe, laser) to complete a multisensor system.Fast Z-measurement with integrated auto focus.High end control system.

Dantsin Werth Video-Check®-IP

Release Time: 2016 - 08 - 23

Werth Video-Check®-IPFixed bridge CMM« – highest precisionand flexibilityMultisensor coordinate measuring machine for fully automatic determination of threedimensional geometries.Modular structure of the system guarantees customized solutions for individualmeasuring tasks.High accurate measuring stage due to air bearing technology and fine grainedgranite.Distortion free telecentric optics for the image processing (by choice 0,2x–100x).Contour image processing for fullyautomatic measuring of basic and nongeometrical elements in incident and transmitted light.Integration of further sensor units to a complete a multi-sensor system providinghigher flexibility and measuring speed.Fast auto focus for Z-measurement.High flexibility by variable illumination devices.Fast CNC continuous-pa...

Dantsin Werth VideoCheck®-IP 250/400

Release Time: 2016 - 08 - 23

Werth VideoCheck®-IPThe new dimension of non-contact probingVideo measuring machine for determination of 2D an 3D geometry’sVideo-Sensor-IP for automatic measuring of basic elements in incident and transmitted light.Modular structure of the system guarantees customized solutions for individual measuring tasks.High accurate measuring stage due to stressfree bearing design.Integratet Werth zoom-optics (0,5x–5x for final magnification 16x–160x andchangeable working distance, resp.change optics 1x–100x for final magnification 34–3400x).Integration for further sensor units to a multisensor system guarantees higherflexibility and measuring speed.Autofocus for Z-measurement(3D-machine).High flexibility by variable CNC-illumination devices.Graphically interactive measuringsoftware WinWerth...

Dantsin Werth Inspector® FQ

Release Time: 2016 - 08 - 23

Werth Inspector® FQThe new generation of the Inspector typesystems – now for direct use in the production environment.Highest positioning speed due to wear free linear drives.Mechanical bearings for rough environmental conditions.Universal measuring machine for fully automatic determination of three dimensional geometries.Modular structure of the system guarantees customized solutions for individual measuring tasks.Highly accurate measuring stage.Distortion free telecentric optics for image.processing (options of 0.2x–100x).Zoom optics are option.Contour image processing for fully automatic measuring of basic and non geometrical elements.WinWerth® SoftwareIntegration of further sensor units to a multi-sensor system guarantee higher flexibility and measuring speed.Fast video autof...

Dantsin Werth Video-Check®-EA

Release Time: 2016 - 08 - 23

Werth Video-Check®-EAFixed bridge CMM« – highest precision and flexibilityMultisensor coordinate measuring machine for fully automatic determination of threedimensional geometries.Modular structure of the system guarantees customized solutions for individual measuring tasks.High accurate measuring stage due to air bearing technology and fine grainedgranite.Distortion free telecentric optics for the image processing (by choice 0,2x–100x).Contour image processing for fully automatic measuring of basic and non geometric elements in incident and transmitted lightIntegration of further sensor units to a multi-sensor system providing higher flexibility and measuring speed.Fast auto focus for Z-measurementHigh flexibility by variable illumination devicesFast CNC continous-path control

Dantsin Werth ScopeCheck S

Release Time: 2016 - 08 - 16

Werth ScopeCheck SThe multi-sensor coordinate measuring machine for high performance metrology in the shopfloor environmentDesign:3D-CNC multisensor CMM for use in the shopfloor environment.Measuring Range: X= 300mm/400mm; Y=200mm, Z=200mmAvailable Measuring: Sensors Werth image processing (IP) video sensor, Werth Laser sensor, touch trigger probes, Werth Fiber probe, etc.Applications: Plastic connectors and housings, stamped/bent parts, printed circuit boards (PCBs), watch plates, etc.

Dantsin Werth VideoCheck® IP 2400

Release Time: 2016 - 08 - 23

Dantsin Werth Scopecheck FB

Release Time: 2016 - 08 - 23

Werth ScopeCheck FBThe new series of multisensor coordinate measuring machines.Three coordinate measuring machine with image processing system for use inshopfloor environment.Video sensor for automatic measurement of regular geometries in incident and transmitted light.Modular structure of the system guarantees customized solutions for individual measuring tasks.Integrated motor zoom-optics (0,5x–5x for final magnification 16x–160x, resp. changeoptics 1x–100x for final magnification 34–3400x).Z-measurement with autofocus method High flexibility with variable illuminationdevices.Shop-oriented graphic interactive measuring software WinWerth®.Simple determination of dimensions by clicking in the graphic.

Dantsin Werth VideoCheck® IP 2800

Release Time: 2016 - 08 - 24

Werth VideoCheck® IP 2800 BauartMultisensor-Koordinatenmessgerät mit Standardkomponenten in Spezial-Bauweise. Höchste Positioniergeschwindigkeit durch verschleißfreie Linearantriebe in der X-Achse.MessbereicheX=2800mm; Y=100mm ; Z=100mm.SensorikWerth BildverarbeitungssensorAnwendungsgebieteMessen von Beschlägen für die Möbelindustrie.

Dantsin Werth Scopecheck MB

Release Time: 2016 - 08 - 24

Werth Scopecheck MBNEW – flexible measurement for largemeasuring ranges using “moving bridge”designs.Three-coordinate measuring machine with image processing system for use inworkshop environment.Video sensor for automatic measurement of regular geometries in incident and transmitted light.Modular system structure guarantees customized solutions for individual measurement tasks.Integrated motor zoom optics (0.5x–5x for final magnification of 16x–160x, orchange optics 1x–100x for final magnification of 34–3400x)Measurement in Z-axis with focus methodHigh flexibility with variable illumination devicesWinWerth® shop-oriented graphic interactive measuring softwareSimple determination of dimension by clicking on the graphic

Dantsin Werth VideoCheck® IP 6400

Release Time: 2016 - 08 - 24

Werth VideoCheck® IP 6400BauartMultisensor-Koordinatenmessgerät mit Standardkomponenten in Spezial-Bauweise. Höchste Positioniergeschwindigkeit durch verschleißfreie Linearantriebe in der X-Achse.MessbereicheX=6400mm ;Y=100mm ; Z=100mm.SensorikWerth Bildverarbeitungssensor, taktil schaltendes TastsystemAnwendungsgebieteMessen von Kugelumlaufspindeln und Kugelumlauftrieben.

Dantsin-Werth EasyScope 3D

Release Time: 2016 - 08 - 24

Werth EasyScope 3DManually 3D Video measuring machine for determination of 2D and 3D geometriesVideo-Sensor for automatic measurement with incident and transmitted light.Sensor head with optoelectronic zoom (field of view: max. 5.1 x 3.8 mm, min. 0.5 x 0.3 mm).Highly accurate measurement in the z-axis by Werth contrast evaluation method.High flexibility due to 8-segments dark field incident light and backlight illumination.Bright-field incident light is integrated in the beam path (option).WinWerth® shop-oriented, graphic interactive measuring software.Simple determination of dimensions by clicking on the graphic.

Dantsin Werth FlatScope

Release Time: 2016 - 08 - 24

Werth FlatScope Werth FlatScope:The scanner as measuring machineThe economic 2D-version of the Werth Basic product lineHigh-grade matrix scanner for automatic 2D measurements in the workshopenvironment.Enclosure for use in harshest environmentIndustrial image processing system for scanning of regular geometries and freeform contours in shopfloor proven design.Workpiece orientation is not requiredModular structure of the system guarantees customized solutions for individual measuring tasks.Incident and transmitted light measurement.Graphic interactive measuring software.WinWerth® for simplest use.Simple determination of dimensions by clicking in the graphicWinWerth® software packages:– CAD-Online®: Programming with CAD data.– BestFit/ToleranceFit®: real gauging with the ...

Dantsin Werth StentCheck®

Release Time: 2016 - 08 - 24

Werth StentCheck®The multisensor coordinate measuring machine for stent measurementDesign3D-CNC multisensor coordinate measuring machine with rotary-/tilt axisMeasuring RangeX= 200mm/ 300mm/400mm; Y=200mm, Z=200mmSensorWerth image processing sensor, touch-trigger probe, Rotary OnTheFlyApplicationsStents with the following features: strut thickness, wall thickness, flute angle, strut connection dimensions, eyelet dimensions, stent length, ...

Dantsin Werth Inspector FQ

Release Time: 2016 - 08 - 24

Werth Inspector FQThe new generation of the Inspector type systems – now for direct use in theproduction environmentHighest positioning speed due to wear free linear drives.Mechanical bearings for rough environmental conditions.Universal measuring machine for fully automatic determination of three dimensional geometries.Modular structure of the system guarantees customized solutions for individual measuring tasks.Highly accurate measuring stage.Distortion free telecentric optics for image processing (options of 0.2x–100x).Zoom optics are option.Contour image processing for fully automatic measuring of basic and nongeometrical elements.WinWerth® Software.Integration of further sensor units to a multi-sensor system guarantee higherflexibility and measuring speed.Fast video autofocus for...

Dantsin Werth Fiber Probe WFP/S

Release Time: 2016 - 08 - 25

Werth Fiber Probe WFP/S Micro probe for high precision applicationsThe patented Werth Fiber Probe WFP allows contact measurements of extremely small geometries with the lowest probing forces. Fields of application: rubber goods and plastic parts, gauges, spinnerets, miniature gears, fuel injection nozzles, calibration of optical measurements, etc.

Dantsin Werth Image Processing

Release Time: 2016 - 08 - 25

Werth Image Processing Non-Contacting Measurement - Fast, Flexible, and SafeThe Werth image processing sensor provides fully automatic measurement of complicated, extremely low contrast work pieces in transmitted and incident light illumination. True contour processing simplifies the recording of complete, enclosed contour parts. Special filtering methods for grayscale image processing, such as contour and image filters reduce the influence of different states of machining, or of dirt particles, on the measurement results. They also have functions for increasing contrast. A light controller ensures that illumination intensity is automatically adapted to changes in surfaces and colors. Measurements in the Z axis are taken by the image processing sensor by focus variation, either by sur...

Dantsin Werth Laser Probe WLP

Release Time: 2016 - 08 - 25

Werth Laser Probe WLP Focault laser for highly accurate surface scanningThe WLP is especially suitable for the fast measurement of planes as well as for the measurement of freeform surfaces that are cambered up to 80°. Because of the vertical beam path, the measurement of the smallest features is also possible.

Dantsin Werth Laser Line Probe LLP

Release Time: 2016 - 08 - 25

Werth Laser Line Probe LLP Laser Line Sensor for fast digitization of workpieces in the lower accuracy rangeThe LLP provides an extremely fast scanning of 3D workpiece surfaces with high point density. High measuring frequencies are obtained even on highly relfective and highly absorbent surfaces.

Dantsin Werth 3D Fiber Probe WFP

Release Time: 2016 - 08 - 25

Werth 3D Fiber Probe WFP High precision three dimensional measurementWith the new 3D Werth Fiber Probe (WFP), the range of applications of the proven Werth Fiber Probe technology has expanded to additional measurement tasks, particularly in 3D. It is well suited for tactile measurement of three dimensional microstructures. Typical applications include measuring tools, watch components, fuel injector nozzles and micromechanical components. The low probing forces make the 3D WFP suitable for the (nearly non-contact) measurement of sensitive components, such as lens surfaces or elastic components made of rubber or plastic. Extremely low probing forces of less than one thousandth of a Newton are possible. Probing spheres with a diameter as small as 20µm are available. The 3D WFP is c...

Dantsin Werth Chromatic Focus Probe CFP

Release Time: 2016 - 08 - 25

Werth Chromatic Focus Probe CFP Chromatic focus sensor for highly accurate non-contact measurement on reflecting surfaces (mirrors, lenses, etc.)The CFP is used for the measurement of highly reflective, absorbent, and transparent materials. The CFP is especially suited for the fast and precise measurement of lens surfaces.
