Products Product Details

You are here : Home → PRODUCTS → Coordinate Measuring Machines

Dantsin Werth StentCheck®

Spec:

Scope:

Availability: 2021 - 03 - 22

Describe:

Explain:

Werth StentCheck®The multisensor coordinate measuring machine for stent measurementDesign3D-CNC multisensor coordinate measuring machine with rotary-/tilt axisMeasuring RangeX= 200mm/ 300mm/400mm; Y=200mm, Z=200mmSensorWerth image processing sensor, touch-trigger probe, Rotary OnTheFlyApplicationsStents with the following features: strut thickness, wall thickness, flute angle, strut connection dimensions, eyelet dimensions, stent length, ...

Catalog Download

Inquiry

Description
Technical
cification
Video
Success Case
Related Products

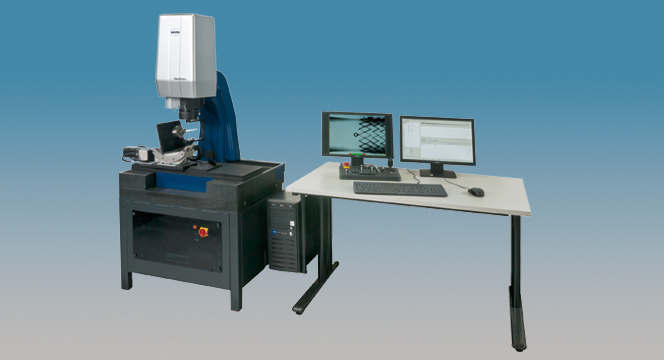

Werth StentCheck®

The multisensor coordinate measuring machine for stent measurement

Design	3D-CNC multisensor coordinate measuring machine with rotary-/tilt axis
Measuring Range	X= 200mm/ 300mm/400mm; Y=200mm, Z=200mm
Sensor	Werth image processing sensor, touch-trigger probe, Rotary OnTheFly
Applications	Stents with the following features: strut thickness, wall thickness, flute angle, strut connection dimensions, eyelet dimensions, stent length, ...
