Products Product Details

Dantsin-RPI QuadMatic

Spec:
Scope:
Availability: 2021 - 03 - 22
Describe:
Explain:
Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part  3 compliant.Precision rotary axes specifically developed to increase  the flexibility, productivity and efficiency of your CMM.Ultra low profile, granite integrated rotary table where maximising measurement volume within the CMM is of utmost importance.Measurement Capacity: • Sizes Ø400mm, Ø600mm, Ø800mm,  Ø1000mm and Ø1500mm • Overall height 1mm (submerged in granite) • Load capacities up to 7,000kgs • Zero backlash drive • Angular accuracy 2 arc seconds • Angular repeatability 0.5 arc seconds
  • Description
  • Technical
    cification
  • Video
  • Success Case
  • Related Products

Dantsin-RPI QuadMatic

Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part  3 compliant.

Precision rotary axes specifically developed to increase  the flexibility, productivity and efficiency of your CMM.

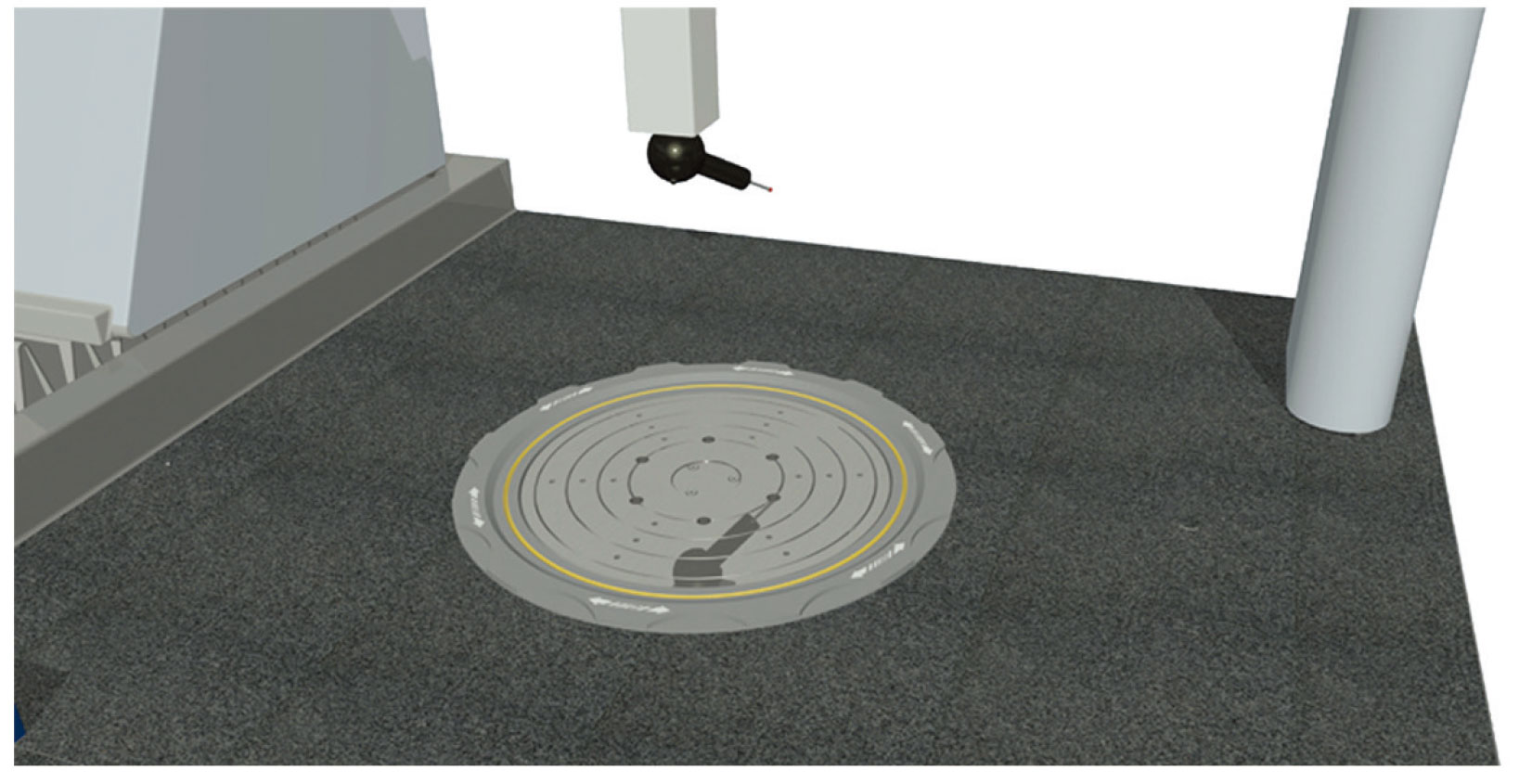

Ultra low profile, granite integrated rotary table where maximising measurement volume within the CMM is of utmost importance.

Measurement Capacity:

• Sizes Ø400mm, Ø600mm, Ø800mm,  Ø1000mm and Ø1500mm

• Overall height 1mm (submerged in granite)

• Load capacities up to 7,000kgs

• Zero backlash drive

• Angular accuracy 2 arc seconds

• Angular repeatability 0.5 arc seconds
OPTICAL SURFACE MEASUREMENT——WATCHMAKING
OPTICAL SURFACE MEASUREMENT——WATCHMAKING
2024 - 12 - 06
Fine Roughness measurement in WatchmakingDiscover the marriage of tradition and technology in watchmaking, powered by Trimos optical measurement instruments. Uncover how these state-of-the-art tools elevate fine roughness measurement, empowering watchmakers to uphold the highest standards of precision and craftsmanship in every timepiece.
More
Germany Black & how to solve the problem of measuring small modulus gear
Germany Black & how to solve the problem of measuring small modulus gear
2016 - 07 - 22
How to ensure the quality of the micro system micro-planetary gear? A multi-sensor coordinate measuring machine, a fiber optic probe, and a set of specialized software makes it possible - using the scanning operation can even be quickly and accurately measure the tooth profile surfaces in accordance with the most stringent standards. From -100 ℃ to + 200 ℃ of extreme temperatures, vibration, ...
More
Trimos instruments at China Railway High-speed (CRH)
Trimos instruments at China Railway High-speed (CRH)
2016 - 07 - 22
China Railway High-speed (CRH) is launching the new generation of trains using Trimos instruments: the LABCONCEPT Nano and Horizon Premium .CRH is the high-speed rail service operated by China Railway. All high-speed trains in commercial use in China are named CRH. The different models of CRH trains are expected to have a maximum speed of 250 km/h, 350 km/h, 416.6 km/h. The fastest trainset, CRH38...
More

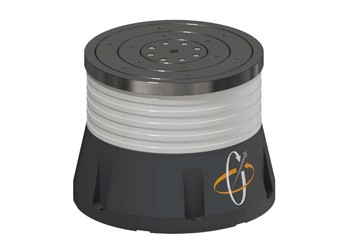

Dantsin-RPI QuadProfile
