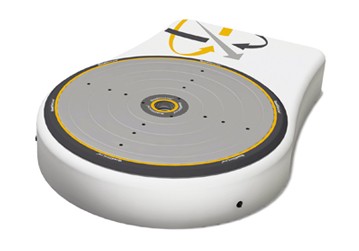

Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part 3 compliant.Precision rotary axes specifically developed to increase the flexibility, productivity and efficiency of your CMM.Low profile rotary table with an extensive measurement range where typical applications include inspection of rotors, disks, blisks and gears.Measurement Capacity: • Sizes Ø400mm, Ø600mm, Ø800mm, Ø1000mm and Ø1500mm • Overall height 150mm, 160mm and 200mm• Load capacities up to 7,000kgs • Zero backlash drive • Angular accuracy 2 arc seconds • Angular repeatability 0.5 arc seconds
SPECTRAL MM is designed for automatic sample preparation of OES and XRF analysis. It is fast and efficient in providing high quality specimen surface thus saving time. SPECTRAL MM has advanced techniques and software with programmable HMI touch screen controls increasing the productivity, sample consistency and operator comfort. With the ability to store and recall preparation programs on the LCD screen, same consistent results are obtained. SPECTRAL MM is a perfect choice for milling of all non-ferrous materials. It can also be used for milling steels upto 55 HRC.
Werth VideoCheck® IP 2400 BauartMultisensor-Koordinatenmessgerät mit Standardkomponenten in Spezial-Bauweise. Höchste Positioniergeschwindigkeit durch verschleißfreie Linearantriebe in der X-Achse.MessbereicheX=2400mm; Y=100mm ; Z=100mm.SensorikWerth BildverarbeitungssensorAnwendungsgebieteMessen von Beschlägen für die Möbelindustrie
The height gauges V7 combine technological innovation and tradition.With their touch-display and lateral insert holders, which have proven their worth for decades, the V7 rank as universal instruments for the workshop.In spite of an entirely revisited interface, Trimos instruments philosophy has been maintained and the user will have no difficulty whatsoever to rapidly take it in hand.The touch display allows a maximal simplified use as no superfluous information is displayed and therefore the number of functions buttons is limited to what is strictly necessary.Functions, normally considered as complex, such as 2D, programming, statistics, become child’s play. It results in an unequalled ease of use and therefore a substantial increase in productivity.The pair of lateral insert h...
The two-dimensional inclination measurement sensors ZEROMATIC 2/1 and 2/2 are perfectly suited for any application where monitoring of the smallest changes in absolute inclinations over a longer period of time is required. The extremely high accuracy is achieved by measuring and compensating for any drift of the absolute „zero“ by applying an automatic reversal measurement at defined intervals.The ZEROMATIC 2/1 has one inclination sensor. Each reversal measurement will provide one set of precise and absolute inclination values in the X and Y axes.The ZEROMATIC 2/2 has two inclination sensors. It can therefore provide continuous values for the inclination in X and Y axes. At defined intervals it will perform a reversal measurement and compensate for any offset.Typical applications are:Moni...
• Integrated BLUETOOTH® Smart data transmission• Maximum speed of displacement : 2 m/sec• Internal and external measurement• This system ensures a perfect guidance and protects the beam against shocks• Displays the upper and lower tolerances• Extremely light instrument• IP67 protection
Additional Rotary Axis for High Precision Co-Ordinate Measurement Machines. All Quadrant products are ISO 10360 part 3 compliant.Precision rotary axes specifically developed to increase the flexibility, productivity and efficiency of your CMM.For automotive applications where ultimate precision may not be required.Measurement Capacity: • Size Ø600mm • Overall height 130mm • Load capacities up to 100kgs • Zero backlash drive • Angular accuracy 6.5 arc seconds • Angular repeatability 0.5 arc seconds
Dantsin-Wyler BlueMETER SIGMABlueMETER SIGMA is a further enhancement of the well known BlueMETER, andhas been developed as an intelligent display unit for the electronic inclinationmeasuring instruments• BlueLEVEL• BlueCLINO and BlueCLINO High Precision• MINILEVEL NT and LEVELTRONIC NT (both by means of cables only)• CLINOTRONIC PLUS• ZEROMATIC• ZEROTRONIC-sensorsBesides the excellent measuring accuracy, the measuring instruments BlueLEVEL,BlueCLINO, CLINOTRONIC PLUS and ZEROTRONIC sensors supply a fully digitalsignal for transmitting these values over long distances without any loss of quality.BlueMETER SIGMA is• a display unitand• an interface between instrument and PC/laptopThe following new functions and features distinguish the BlueMETER SIGMAfrom the BlueMETER:• large and very easy-...
Werth ScopeCheck FBThe new series of multisensor coordinate measuring machines.Three coordinate measuring machine with image processing system for use inshopfloor environment.Video sensor for automatic measurement of regular geometries in incident and transmitted light.Modular structure of the system guarantees customized solutions for individual measuring tasks.Integrated motor zoom-optics (0,5x–5x for final magnification 16x–160x, resp. changeoptics 1x–100x for final magnification 34–3400x).Z-measurement with autofocus method High flexibility with variable illuminationdevices.Shop-oriented graphic interactive measuring software WinWerth®.Simple determination of dimensions by clicking in the graphic.
The height gauge V9 has been developed for the most demanding users. Laboratories and workshops for whom measuring reliability is determining will fully appreciate its exceptional precision level and its "Swiss Made" finish.Metrological performances have been the core of the development of this height gauge. No compromise on precision and repeatability have been tolerated. This is why some construction details, particularly probe holders differ from other models.The display, based on an entirely tactile interface, offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angles measurements o...
• PRESET function• Automatic switching of measuring direction• Setting of the «constant» for measurement with cylindrical or spherical anvils• Additional bases available (see accessories)
